SA562LR1142
SA562LR1142 is DUAL DIGITS SMD LED DISPLAY manufactured by Para Light Electronics.
PARA LIGHT ELECTRONICS CO., LTD.
11F., No. 8, Jiankang Rd., Zhonghe Dist., New Taipei City 235, Taiwan,
Tel: 886-2-2225-3733
Fax: 886-2-2225-4800
E-mail: para@para..tw http://.para..tw

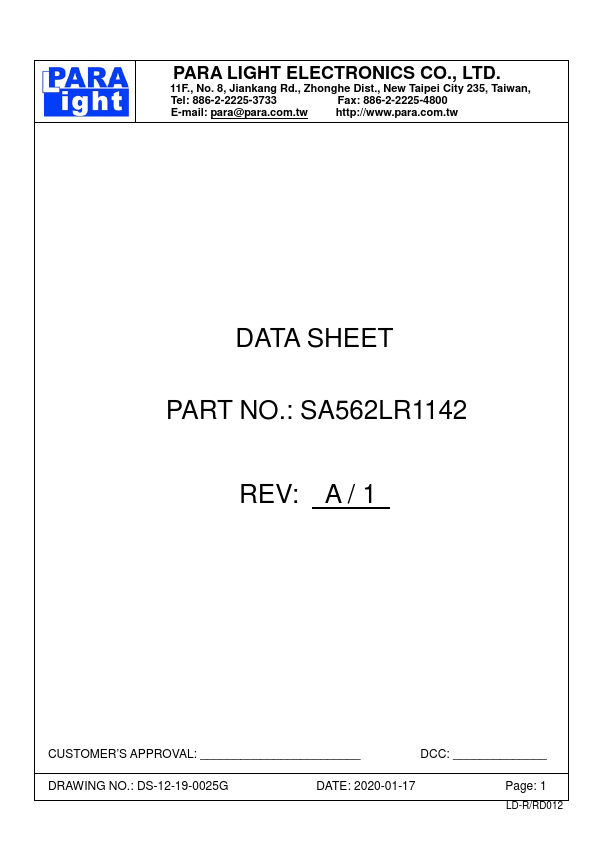

DATA SHEET PART NO.: SA562LR1142
REV: A / 1
CUSTOMER’S APPROVAL: ________________________
DCC: ______________
DRAWING NO.: DS-12-19-0025G
DATE: 2020-01-17
Page: 1
LD-R/RD012
0.56” DUAL DIGITS SMD LED DISPLAY
REV: A / 1
PACKAGE DIMENSIONS
NOTES: 1. All dimensions are in millimeters (inches) 2. Tolerance is +/- 0.25mm (0.010") unless otherwise specified 3. The specifications, electrical characteristics and technical data described in this datasheet are subject to change without prior notice
DRAWING NO.: DS-12-19-0025G
DATE: 2020-01-17
Page: 2
LD-R/RD013
0.56” DUAL DIGITS SMD LED DISPLAY
REV: A / 1

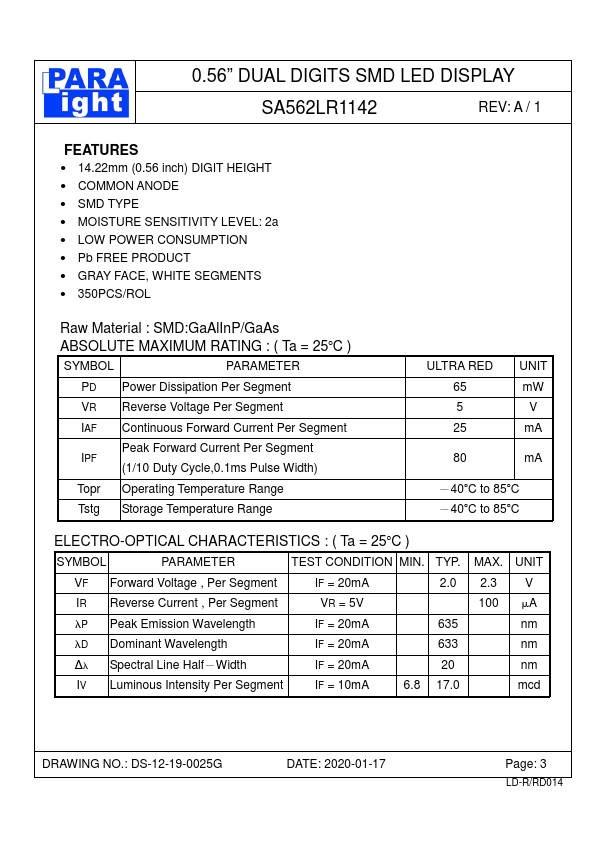

Features
- 14.22mm (0.56 inch) DIGIT HEIGHT
- MON ANODE
- SMD TYPE
- MOISTURE SENSITIVITY LEVEL: 2a
- LOW POWER CONSUMPTION
- Pb FREE...
