PE3336 - Integer-N PLL

Datasheet Summary

Description

Peregrine’s PE3336 is a high performance integer-N PLL capable of frequency synthesis up to 3000 MHz.

The superior phase noise performance of the PE3336 makes it ideal for applications such as LMDS / MMDS / WLL basestations and demanding terrestrial systems.

Features

  • a 10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hard wired. The PE3336 Phase Locked-Loop is optimized for terrestrial.

📥 Download Datasheet

Datasheet preview – PE3336

Datasheet Details

Part number PE3336
Manufacturer Peregrine Semiconductor
File Size 274.70 KB
Description Integer-N PLL
Datasheet download datasheet PE3336 Datasheet

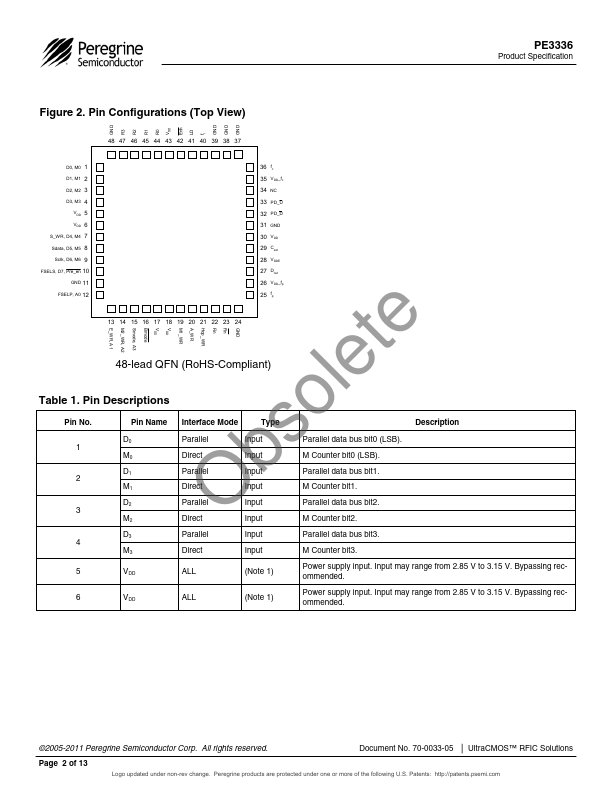

Additional preview pages of the PE3336 datasheet.

📁 Similar Datasheet

  • PE3 - GaAs Foundry Services PROCESS PE3 (Tyco Electronics)
  • PE300B-10UV - CERMAX FOCUSED XENON ARC LAMPS (PerkinElmer Optoelectronics)
  • PE300BF - CERMAX XENON ARC LAMPS (PerkinElmer Optoelectronics)
  • PE300BUV - CERMAX XENON ARC LAMPS (PerkinElmer Optoelectronics)
  • PE300C-10F - CERMAX FOCUSED XENON ARC LAMPS (PerkinElmer Optoelectronics)
  • PE3010 - N-Channel Enhancement Mode Power MOSFET (semi one)
  • PE3010 - N-Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE30100K - N-Channel Enhancement Mode Power MOSFET (semi one)
  • PE30100K - N-Channel Power MOSFET (ChipSourceTek)
  • PE3018U - N-Channel Enhancement Mode Power MOSFET (semi one)
Other Datasheets by Peregrine Semiconductor
  • PE3335 - Integer-N PLL
  • PE3339 - Integer-N PLL
  • PE33241 - UltraCMOS Integer-N PLL Frequency Synthesizer
  • PE3340 - Integer-N PLL
  • PE3341 - Integer-N PLL
  • PE3342 - 2.7GHz Integer-N PLL
  • PE3236 - 2200MHz UltraCMOS Integer-N PLL
  • PE3501 - Low Power CMOS Divide by 2 Prescaler

Full PDF Text Transcription

Click to expand full text

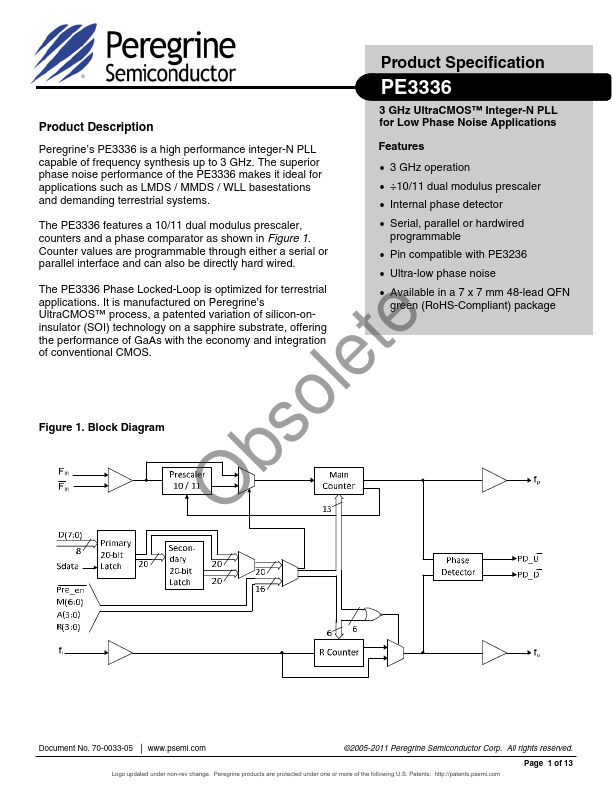

Product Specification PE3336 Product Description Peregrine’s PE3336 is a high performance integer-N PLL capable of frequency synthesis up to 3000 MHz. The superior phase noise performance of the PE3336 makes it ideal for applications such as LMDS / MMDS / WLL basestations and demanding terrestrial systems. The PE3336 features a 10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hard wired. The PE3336 Phase Locked-Loop is optimized for terrestrial applications.
