PE4124 - High Linearity Quad MOSFET Mixer

Description

The PE4124 is a high linearity, passive Quad MOSFET Mixer for GSM 800 & Cellular Base Station Receivers and exhibits high dynamic range performance over a broad LO drive range up to 20 dBm.

Features

  • Integrated, single-ended RF & LO interfaces.
  • High linearity: IIP3 > +32 dBm, 820 - 920 MHz (+17 dBm LO).
  • Low conversion loss: 6.9 dB (+17 dBm LO).
  • High isolation: typical LO-IF at 43 dB, LO-RF at 31 dB.
  • Designed for low-side LO injection Figure 2. Package Type 8-lead TSSOP LO RF PE4124 IF Table 1. AC and DC Electrical Specifications @ +25 °C (ZS = ZL = 50 Ω) Parameter Frequency Range: LO RF IF1 Conversion Loss2 Isolation: LO-RF LO-IF Input I.

📥 Download Datasheet

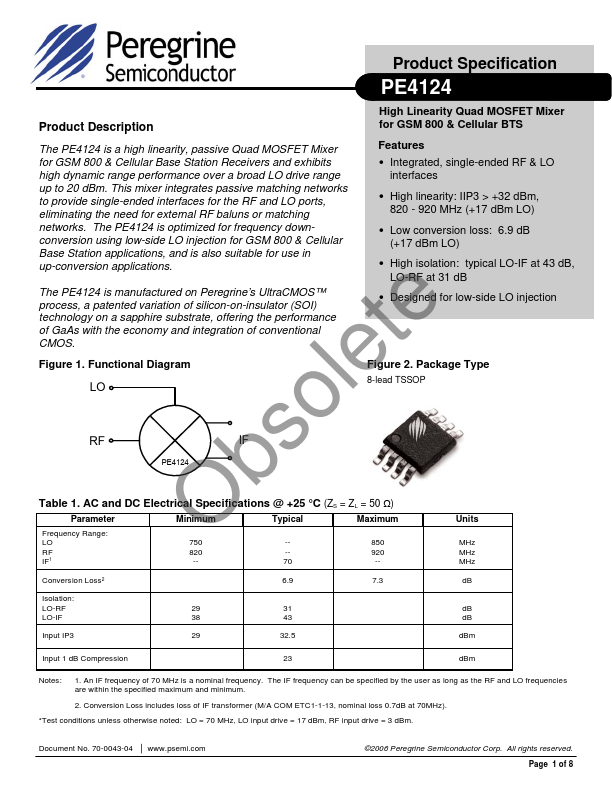

Datasheet preview – PE4124

Datasheet Details

Part number PE4124
Manufacturer Peregrine Semiconductor
File Size 290.88 KB
Description High Linearity Quad MOSFET Mixer
Datasheet download datasheet PE4124 Datasheet

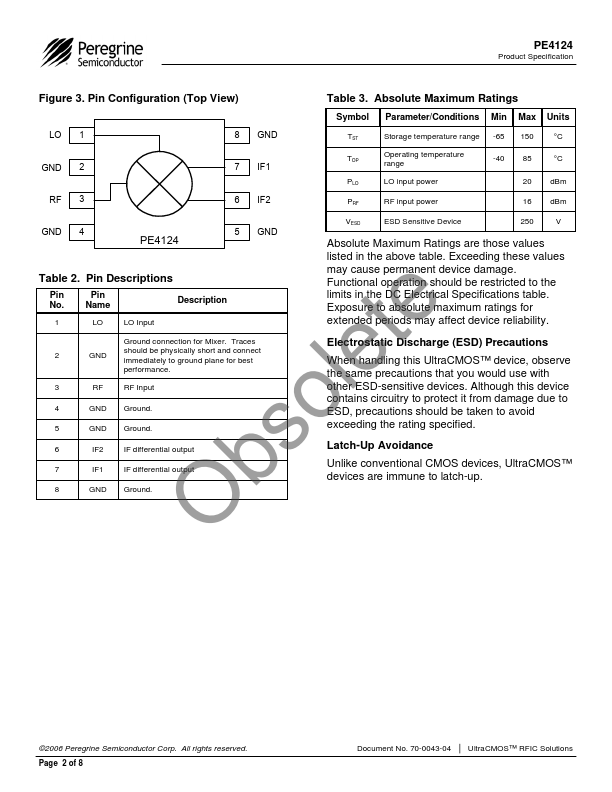

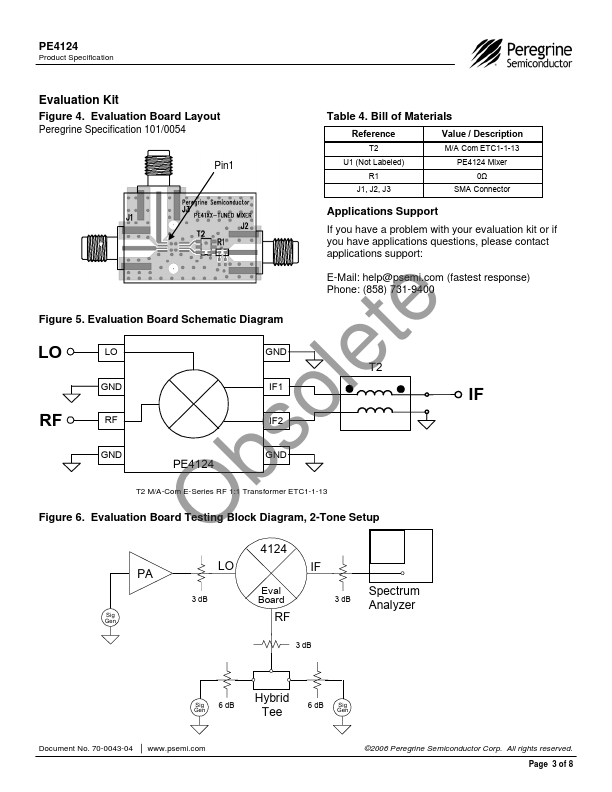

Additional preview pages of the PE4124 datasheet.

📁 Similar Datasheet

  • PE4005 - RF CONNECTOR (Pasternack Enterprises)
  • PE4013S - N-Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE4013SA - N-Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE4025KC - N and P Channel Enhancement Mode Power MOSFET (ChipSourceTek)
  • PE40F - THYRISTOR MODULE (SanRex Corporation)
  • PE40N12 - N-Channel Enhancement Mode Power MOSFET (semi one)
  • PE40N65 - N-Channel Enhancement Mode Power MOSFET (semi one)
  • PE40P07S - P-Channel Enhancement Mode Power MOSFET (semi one)
  • PE40P13S - P-Channel Enhancement Mode Power MOSFET (semi one)
  • PE40P5 - P-Channel Enhancement Mode Power MOSFET (semi one)
Other Datasheets by Peregrine Semiconductor
  • PE4122 - High Linearity Quad MOSFET Mixer
  • PE4125 - High Linearity Quad MOSFET Mixer
  • PE4126 - High Linearity Quad MOSFET Mixer
  • PE4134 - High Linearity Quad MOSFET Mixer
  • PE4135 - High Linearity UltraCMOS Quad MOSFET Mixer
  • PE4140 - Ultra-High Linearity Broadband Quad MOSFET Array
  • PE4141 - Broadband Quad MOSFET Array
  • PE4150 - UltraCMOS Low Frequency Passive Mixer

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Product Specification PE4124 Product Description The PE4124 is a high linearity, passive Quad MOSFET Mixer for GSM 800 & Cellular Base Station Receivers and exhibits high dynamic range performance over a broad LO drive range up to 20 dBm. This mixer integrates passive matching networks to provide single-ended interfaces for the RF and LO ports, eliminating the need for external RF baluns or matching networks. The PE4124 is optimized for frequency downconversion using low-side LO injection for GSM 800 & Cellular Base Station applications, and is also suitable for use in up-conversion applications.
