PE4230 - SPDT High Power UltraCMOS RF Switch

General Description

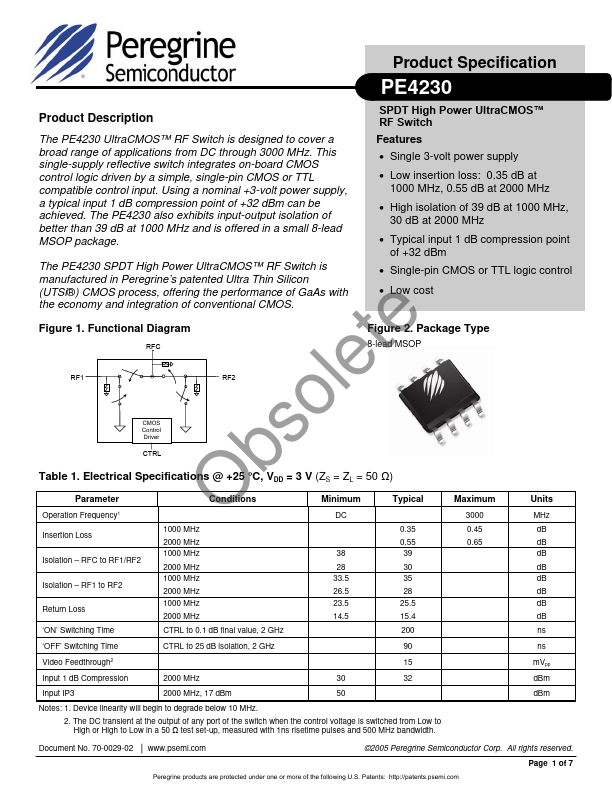

The PE4230 UltraCMOS™ RF Switch is designed to cover a broad range of applications from DC through 3000 MHz.

This single-supply reflective switch integrates on-board CMOS control logic driven by a simple, single-pin CMOS or TTL compatible control input.

Key Features

  • Single 3-volt power supply.
  • Low insertion loss: 0.35 dB at 1000 MHz, 0.55 dB at 2000 MHz.
  • High isolation of 39 dB at 1000 MHz, 30 dB at 2000 MHz.
  • Typical input 1 dB compression point of +32 dBm.
  • Single-pin CMOS or TTL logic control.
  • Low cost Figure 2. Package Type 8-lead MSOP RF1 RF2 CMOS Control Driver CTRL Table 1. Electrical Specifications @ +25 °C, VDD = 3 V (ZS = ZL = 50 Ω) Parameter Operation Frequency Insertion Loss Isolation.
