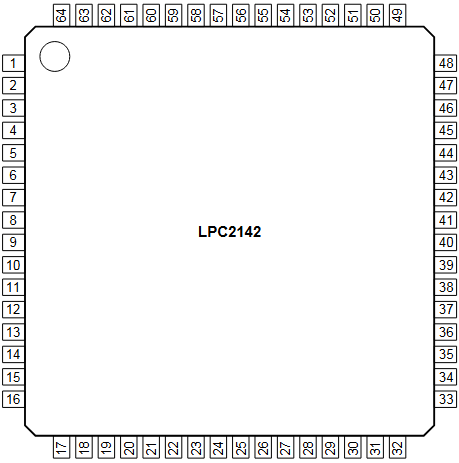

LPC2142 - 16/32 Bit Microcontroller

General Description

The LPC2142/2148 microcontrollers are based on a 32/16-bit ARM7TDMI-S CPU with real-time emulation and embedded trace support, that combines the microcontroller with 64 kB and 512 kB of embedded high-speed flash memory.

Key Features

  • 2.1 Key features.
  • 16/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package.
  • 16 kB/40 kB of on-chip static RAM and 64 kB/512 kB of on-chip flash program memory. 128-bit wide interface/accelerator enables high-speed 60 MHz operation.
  • In-System Programming/In-.
