PDC2604Z - N-Channel MOSFET

Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology.

This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.

Features

  • 20V,80A, RDS(ON) =3.5mΩ@VGS = 10V.
  • Improved dv/dt capability.
  • Fast switching.
  • 100% EAS Guaranteed.
  • Green Device Available.

📥 Download Datasheet

Datasheet Details

Part number PDC2604Z
Manufacturer Potens semiconductor
File Size 469.04 KB
Description N-Channel MOSFET
Datasheet download datasheet PDC2604Z Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PDC2 32 bit Embedded ASIC Core Peripheral Atmel
PDC-10-1+ Directional Coupler Mini-Circuits
PDC0302 SMD POWER INDUCTORS Superworld Electronics
PDC0403 SMD POWER INDUCTORS Superworld Electronics
PDC0502 SMD POWER INDUCTORS Superworld Electronics

Other Datasheets by Potens semiconductor

Part Number Description
PDC2601X P-Channel MOSFETs
PDC2602X N-Channel MOSFETs
PDC2603Z P-Channel MOSFET
PDC2209V P-Channel MOSFET
PDC2305Z P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

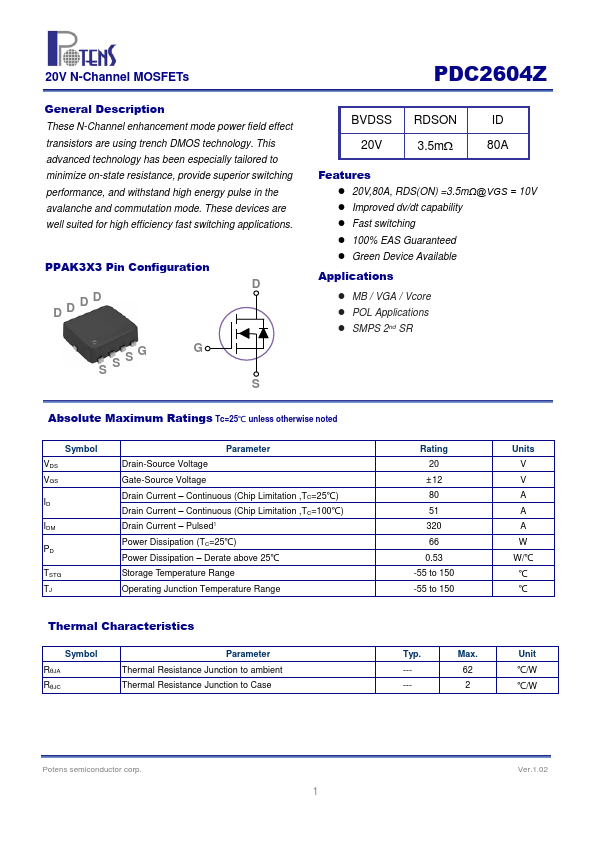

20V N-Channel MOSFETs General Description These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching applications. PPAK3x3 Pin Configuration DDDD S S SG G D S PDC2604Z BVDSS 20V RDSON 3.5m ID 80A Features  20V,80A, RDS(ON) =3.
