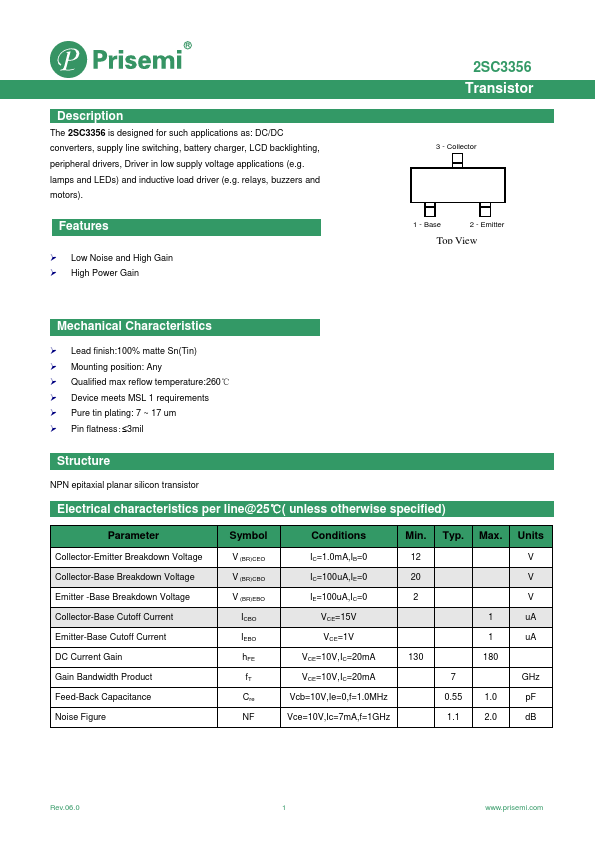

Prisemi 2SC3356
The 2SC3356 is designed for such applications as: DC/DC converters, supply line switching, battery charger, LCD backlighting, peripheral drivers, Driver in low supply voltage applications (e.g.| Part No. | 2SC3356 |
|---|---|
| Datasheet | 2SC3356 Download |
| Manufacturer |  Prisemi |
| Description | Transistor |
| Buy | Stock & Price |
DESCRIPTION
lamps and LEDs) and inductive load driver (e.g. relays, buzzers and motors).FEATURES
● Low Noise and High Gain● High Power Gain 2SC3356 Transistor 3 - Collector 1 - Base 2 - Emitter Top View Mechanical Characteristics
● Lead finish:100% matte Sn(Tin)
● Mounting position: Any
● Qualified max reflow temperature:260℃
● Device meets MSL 1 requirements
● Pure tin plating: 7 ~ 17 um

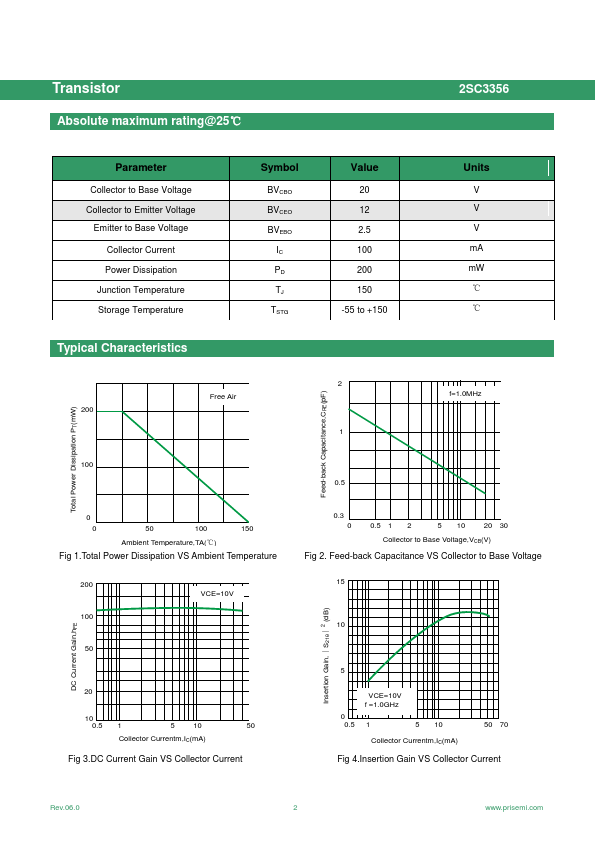

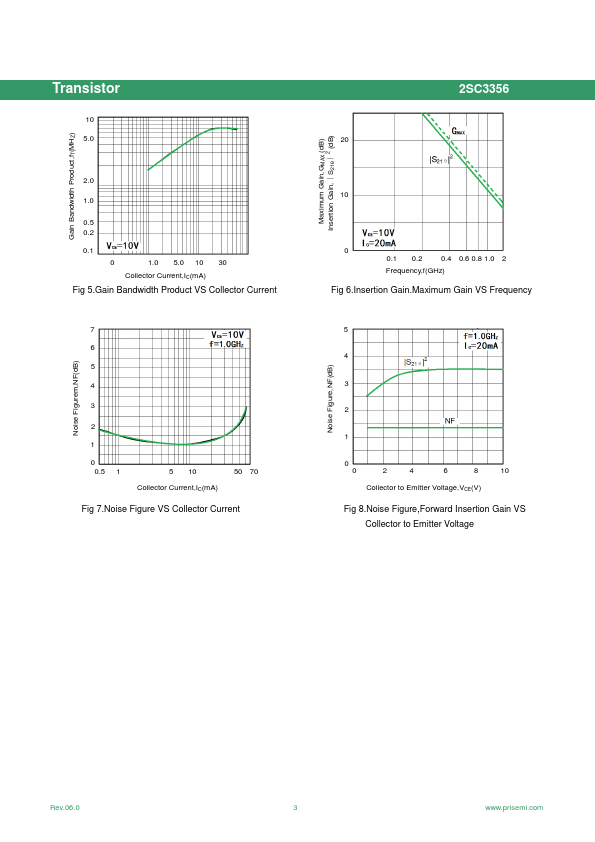

● Pin flatness:≤3mil Structure NPN epitaxial planar silicon transistor Electrical characteristics per line@25℃( unless otherwise specified) Parameter Collector-Emitter Breakdown Voltage Collector-Base Breakdown Voltage Emitter -Base Breakdown Voltage Collector-Base Cutoff Current Emitter-Base Cutoff Current DC Current Gain Gain Bandwidth Product Feed-Back Capacitance Noise Figure Symbol V (BR)CEO V (BR)CBO V (BR)EBO ICBO IEBO hFE fT Cre NF Conditions IC=1.0mA,IB=0 IC=100uA,IE=0 IE=100uA,IC=0 VCE=15V VCE=1V VCE=10V,IC=20mA VCE=10V,IC=20mA Vcb=10V,Ie=0,f=1.0MHz Vce=10V,Ic=7mA,f=1GHz Min. 12 20 2 130 Typ.
