PSOT05 - STANDARD CAPACITANCE TVS ARRAY

This page provides the datasheet information for the PSOT05, a member of the PSOT03 STANDARD CAPACITANCE TVS ARRAY family.

Product Overview

Protek Devices

📥 Download Datasheet

Datasheet Details

Part number	PSOT05
Manufacturer	Protek Devices
File Size	452.71 KB
Description	STANDARD CAPACITANCE TVS ARRAY
Datasheet	PSOT05 Datasheet

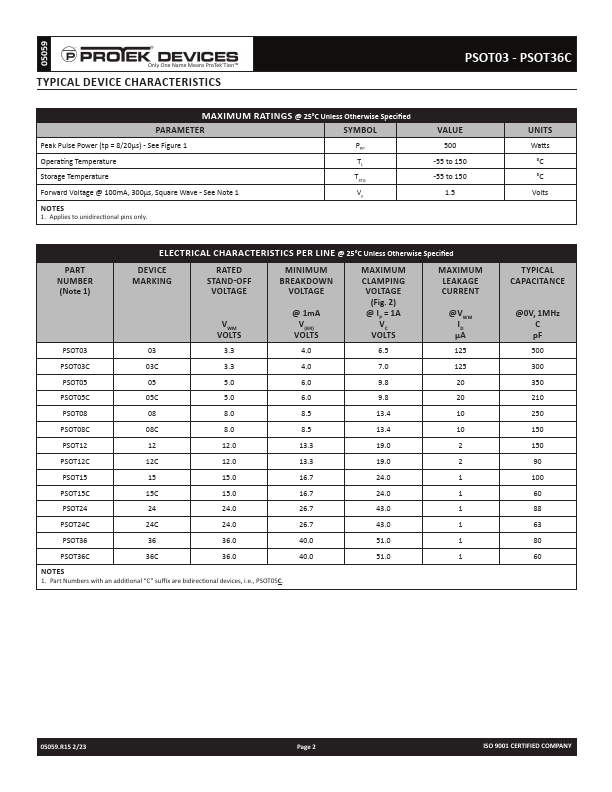

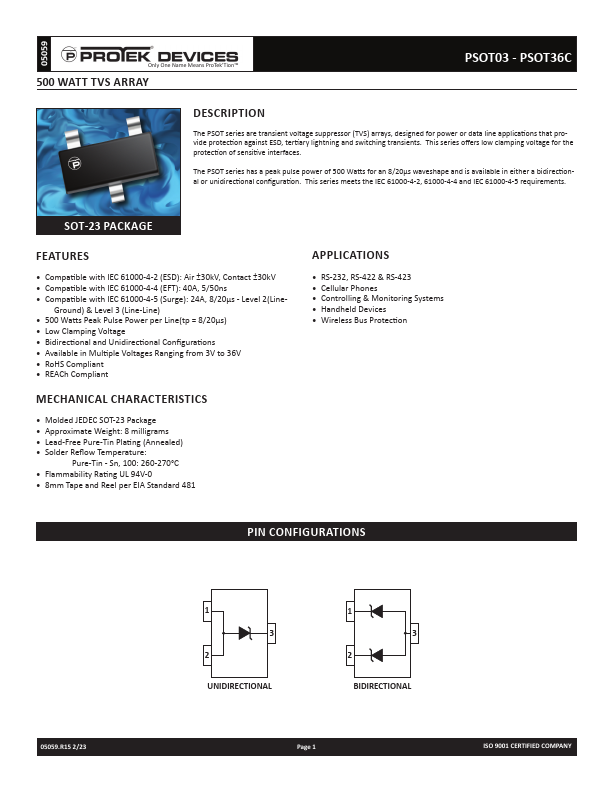

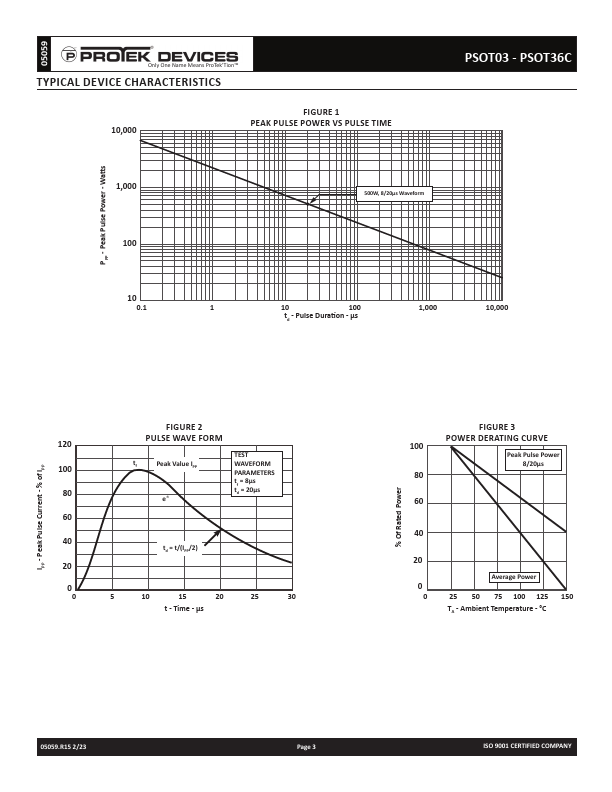

Additional preview pages of the PSOT05 datasheet.

PSOT05 Product details

Description

The PSOT series are transient voltage suppressor (TVS) arrays, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients.

This series offers low clamping voltage for the protection of sensitive interfaces.

Features

Compatible with IEC 61000-4-2 (ESD): Air 15kV, Contact 8kV.
Compatible with IEC 61000-4-4 (EFT): 40A, 5/50ns.
Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Ground) & Level 3 (Line-Line).
500 Watts Peak Pulse Power per Line(tp = 8/20µs).
Low Clamping Voltage.
Bidirectional and Unidirectional Configurations.
Available in Multiple Voltages Ranging from 3V to 36V.
RoHS Compliant.
REACh Com.
