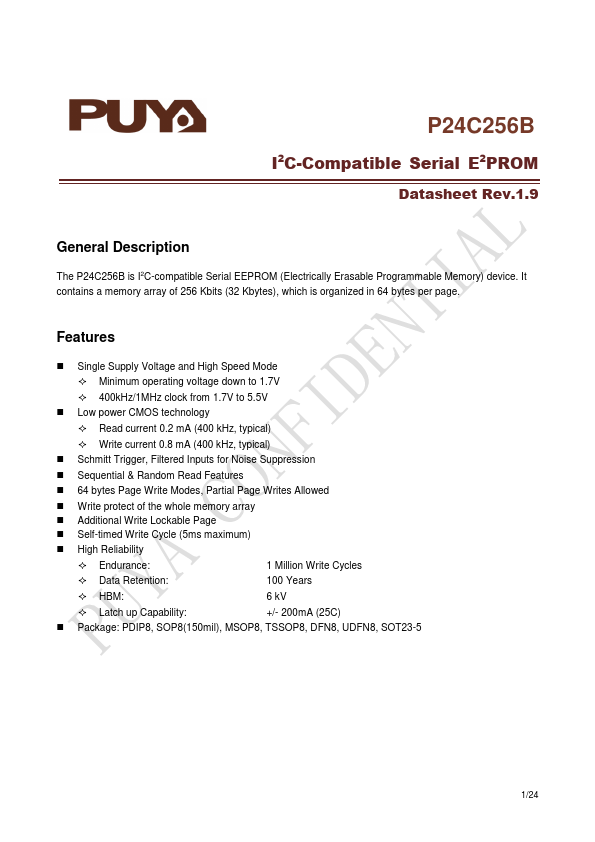

I2C-patible Serial E2PROM Datasheet Rev.1.9 General Description The P24C256B is I2C-patible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 256 Kbits (32 Kbytes), which is organized in 64 bytes per page. Features - Single Supply Voltage and High Speed Mode - Minimum operating voltage down to 1.7V - 400k Hz/1MHz clock from 1.7V to 5.5V - Low power CMOS technology - Read current 0.2 m A (400 k Hz, typical) - Write current 0.8 m A (400 k Hz, typical) - Schmitt Trigger, Filtered Inputs for Noise Suppression - Sequential & Random Read Features - 64 bytes Page Write Modes, Partial Page Writes Allowed - Write protect of the whole memory array - Additional Write Lockable Page - Self-timed Write Cycle (5ms maximum) - High Reliability - Endurance: 1 Million Write Cycles - Data Retention: 100 Years - HBM: 6 k V - Latch up Capability: +/- 200m A (25C) - Package: PDIP8, SOP8(150mil), MSOP8, TSSOP8, DFN8, UDFN8, SOT23-5 1/24 1. Pin Configuration 1.1 Pin...
