P24C256F Datasheet | Puya Semiconductor

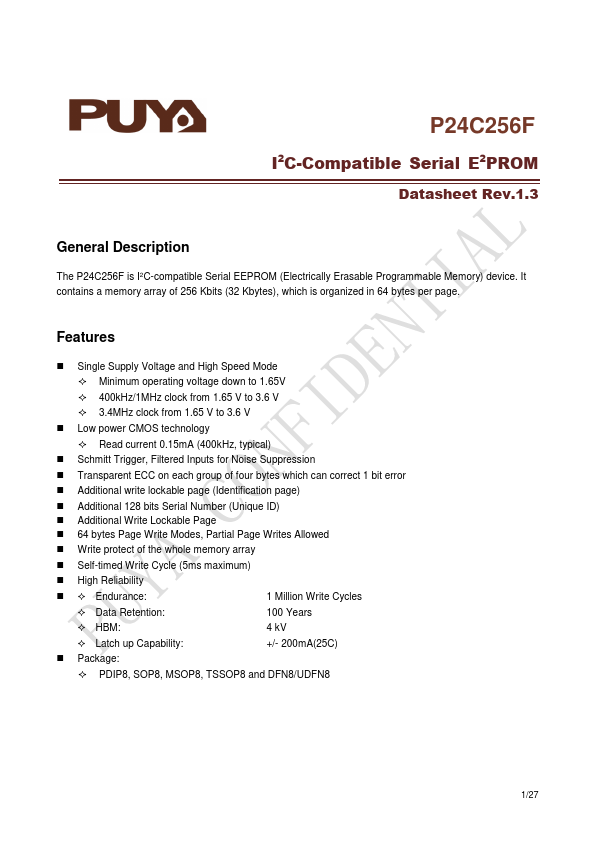

I2C-patible Serial E2PROM Datasheet Rev.1.3 General Description The P24C256F is I2C-patible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 256 Kbits (32 Kbytes), which is organized in 64 bytes per page. Features - Single Supply Voltage and High Speed Mode - Minimum operating voltage down to 1.65V - 400k Hz/1MHz clock from 1.65 V to 3.6 V - 3.4MHz clock from 1.65 V to 3.6 V - Low power CMOS technology - Read current 0.15m A (400k Hz, typical) - Schmitt Trigger, Filtered Inputs for Noise Suppression - Transparent ECC on each group of four bytes which can correct 1 bit error - Additional write lockable page (Identification page) - Additional 128 bits Serial Number (Unique ID) - Additional Write Lockable Page - 64 bytes Page Write Modes, Partial Page Writes Allowed - Write protect of the whole memory array - Self-timed Write Cycle (5ms maximum) - High Reliability - - Endurance: 1 Million Write Cycles - Data Retention: 100 Years - HBM: 4 k V - Latch up Capability: +/- 200m A(25C) - Package: - PDIP8, SOP8, MSOP8, TSSOP8 and...
