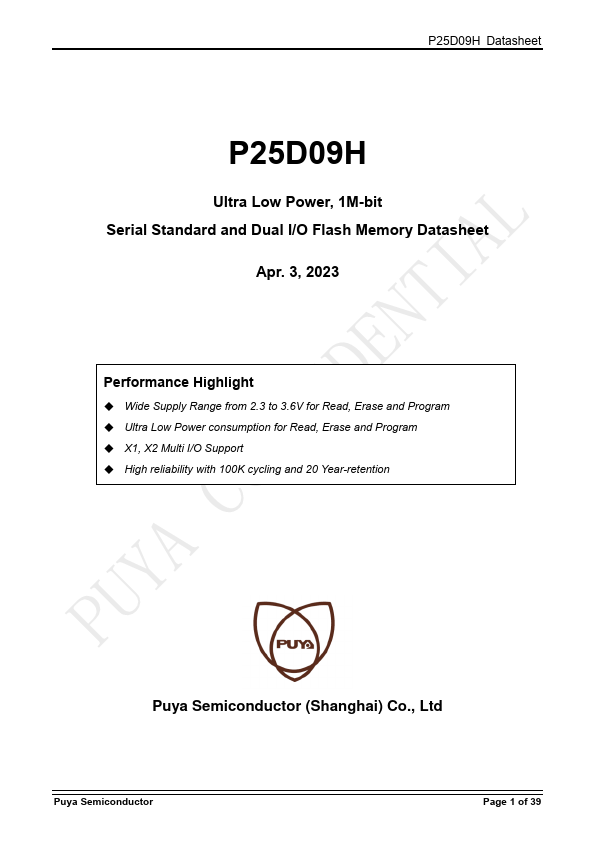

P25D09H Datasheet | Puya Semiconductor

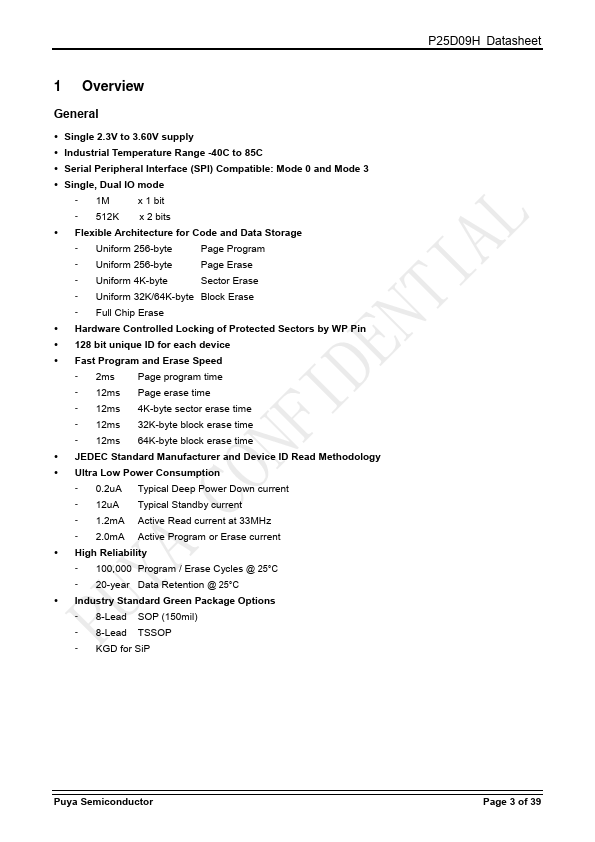

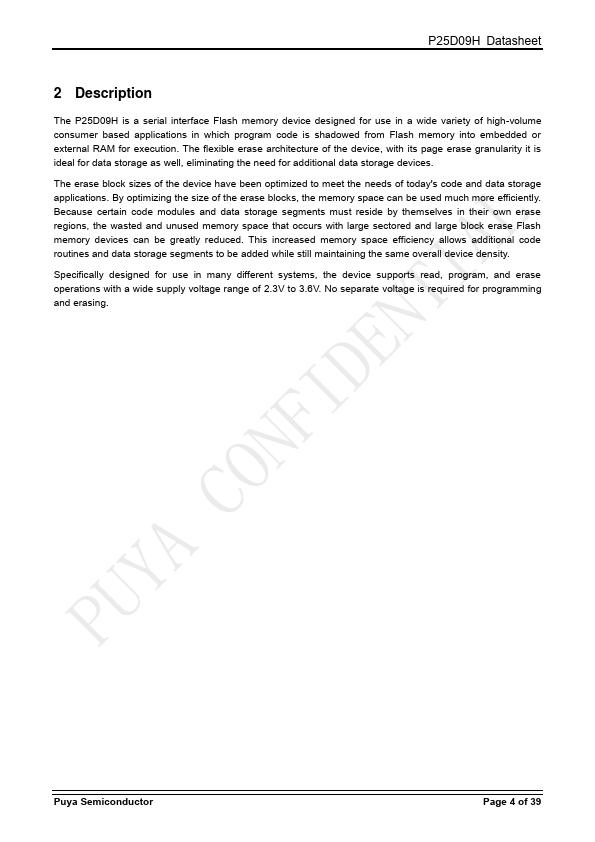

Overview General - Single 2.3V to 3.60V supply - Industrial Temperature Range -40C to 85C - Serial Peripheral Interface (SPI) patible: Mode 0 and Mode 3 - Single, Dual IO mode - 1M x 1 bit - 512K x 2 bits - Flexible Architecture for Code and Data Storage - Uniform 256-byte Page Program - Uniform 256-byte Page Erase - Uniform 4K-byte Sector Erase - Uniform 32K/64K-byte Block Erase - Full Chip Erase - Hardware Controlled Locking of Protected Sectors by WP Pin - 128 bit unique ID for each device - Fast Program and Erase Speed - 2ms Page program time - 12ms Page erase time - 12ms 4K-byte sector erase time - 12ms 32K-byte block erase time - 12ms 64K-byte block erase time - JEDEC Standard Manufacturer and Device ID Read Methodology - Ultra Low Power Consumption - 0.2u A Typical Deep Power Down current - 12u A Typical Standby current - 1.2m A Active Read current at 33MHz - 2.0m A Active Program or Erase current - High Reliability - 100,000 Program / Erase Cycles @ 25°C - 20-year Data Retention @ 25°C - Industry Standard Green Package Options - 8-Lead SOP (150mil) - 8-Lead TSSOP - KGD for Si P P25D09H Datasheet Puya...
