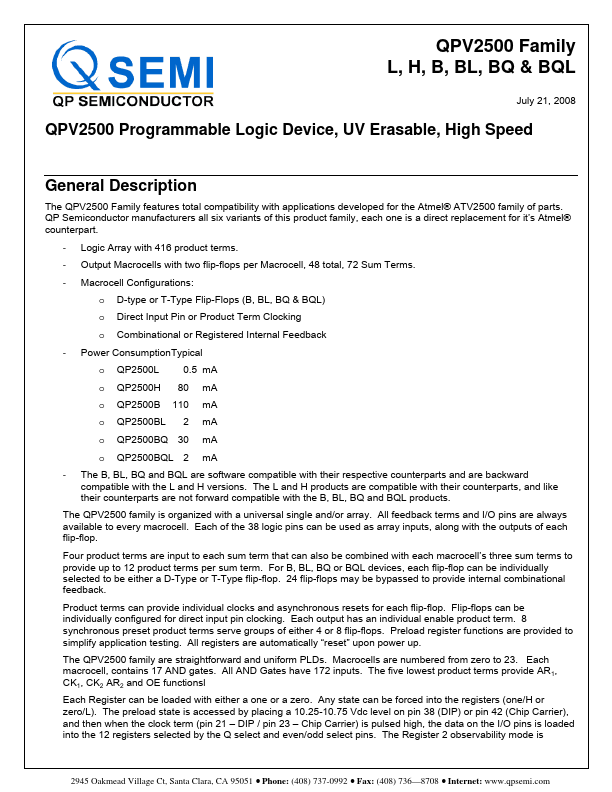

QPV2500B
Description
The QPV2500 Family features total patibility with applications developed for the Atmel® ATV2500 family of parts. QP Semiconductor manufacturers all six variants of this product family, each one is a direct replacement for it’s Atmel® counterpart.
- Logic Array with 416 product terms.
- Output Macrocells with two flip-flops per Macrocell, 48 total, 72 Sum Terms.
- Macrocell Configurations: o D-type or T-Type Flip-Flops (B, BL, BQ & BQL) o Direct Input Pin or Product Term Clocking o binational or Registered Internal Feedback
- Power Consumption Typical o QP2500L 0.5 m A o QP2500H 80 m A o QP2500B 110 m A o QP2500BL 2 m A o QP2500BQ 30 m A o QP2500BQL 2 m A
- The B, BL, BQ and BQL are software patible with their respective counterparts and are backward patible with the L and H versions. The L and H products are patible with their counterparts, and like their counterparts are not forward patible with the B, BL, BQ and BQL products. The QPV2500 family is organized with a universal...
