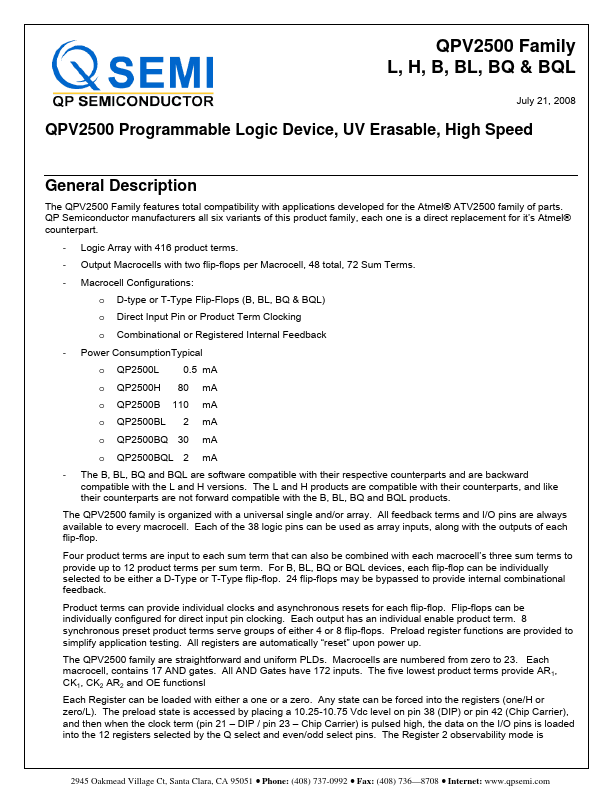

QPV2500 Family L, H, B, BL, BQ & BQL
July 21, 2008
QPV2500 Programmable Logic Device, UV Erasable, High Speed
General Description
The QPV2500 Family features total compatibility with applications developed for the Atmel® ATV2500 family of parts. QP Semiconductor manufacturers all six variants of this product family, each one is a direct replacement for it’s Atmel® counterpart.
- Logic Array with 416 product terms. - Output Macrocells with two flip-flops per Macrocell, 48 total, 72 Sum Terms. - Macrocell Configurations:
o D-type or T-Type Flip-Flops (B, BL, BQ & BQL) o Direct Input Pin or Product Term Clocking o Combinational or Registered Internal Feedback - Power ConsumptionTypical o QP2500L 0.
