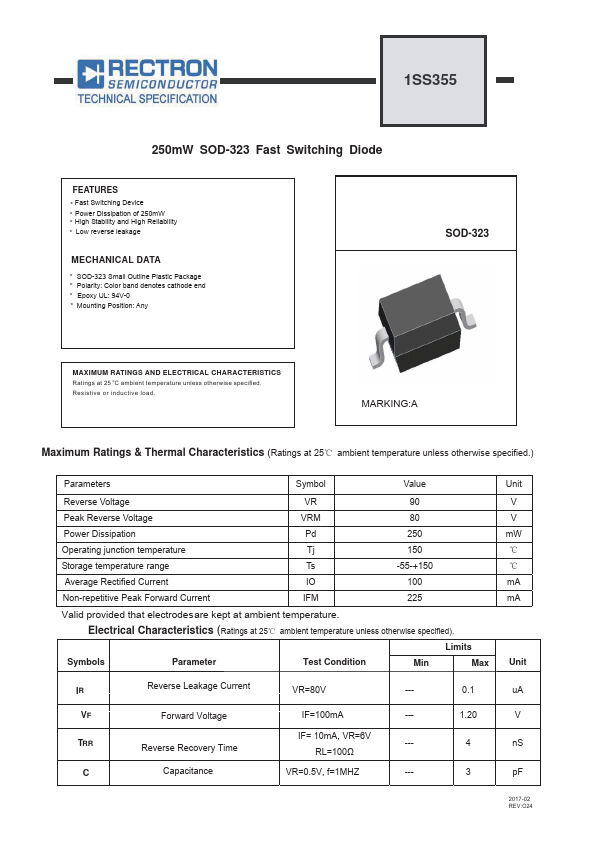

Datasheet Summary
250mW SOD-323 Fast Switching Diode
Features
- Fast Switching Device
- Power Dissipation of 250mW
- High Stability and High Reliability
- Low reverse leakage
MECHANICAL DATA

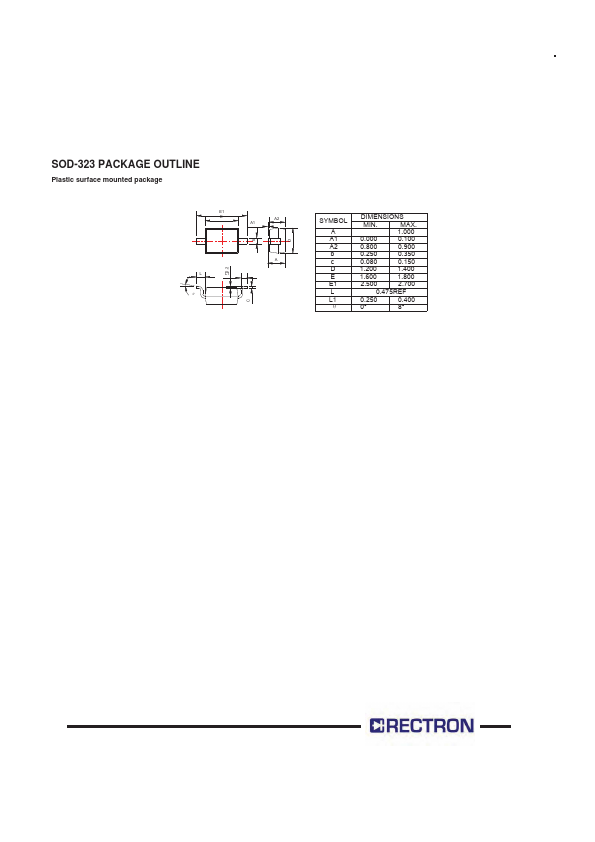

- SOD-323 Small Outline Plastic Package
- Polarity: Color band denotes cathode end
- Epoxy UL: 94V-0
- Mounting Position: Any
SOD-323
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Resistive or inductive load.
MARKING:A
Maximum Ratings & Thermal Characteristics (Ratings at 25ć ambient temperature unless otherwise specified.)
Parameters
Symbol
Value
Reverse Voltage
Peak Reverse Voltage
Power Dissipation
Pd
Operating...
