RT8110 Datasheet Compact Synchronous Buck DC/dc Pwm Controller

Manufacturer: Richtek

Overview: RT8110 pact Synchronous Buck DC/DC PWM Controller General.

Datasheet Details

Part number RT8110
Manufacturer Richtek
File Size 220.51 KB
Description Compact Synchronous Buck DC/DC PWM Controller
Datasheet RT8110_RICHTEK.pdf

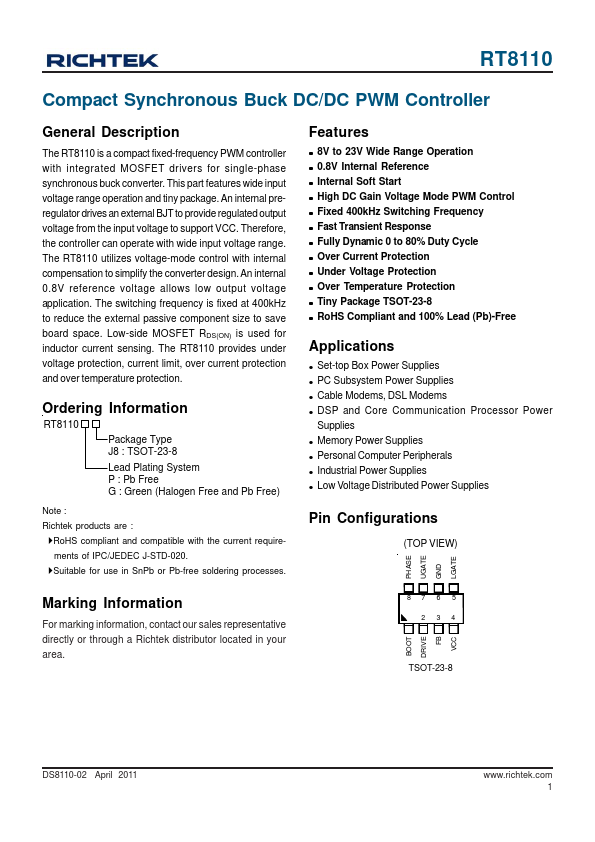

General Description

The RT8110 is a pact fixed-frequency PWM controller with integrated MOSFET drivers for single-phase synchronous buck converter.

This part

Key Features

  • wide input voltage range operation and tiny package. An internal preregulator drives an external BJT to provide regulated output voltage from the input voltage to support VCC. Therefore, the controller can operate with wide input voltage range. The RT8110 utilizes voltage-mode control with internal compensation to simplify the converter design. An internal 0.8V reference voltage allows low output voltage.
