RT8110A - Wide Input Range Synchronous Buck DC/DC PWM Controller

General Description

The RT8110A is a fixed-frequency PWM controller with integrated MOSFET drivers for single power rail synchronous single-phase buck converter.

Key Features

  • an internal regulator that allows wide input voltage range operation. The RT8110A utilizes voltage-mode control with internal compensation to simplify the converter design. An internal 0.8V reference voltage allows low output voltage.

📥 Download Datasheet

Datasheet Details

Part number RT8110A
Manufacturer Richtek
File Size 175.49 KB
Description Wide Input Range Synchronous Buck DC/DC PWM Controller
Datasheet download datasheet RT8110A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RT81 AUTOMOTIVE BRIDGE RECTIFIERS LRC
RT810 AUTOMOTIVE BRIDGE RECTIFIERS LRC
RT8100A Synchronous buck PWM DC/DC Richtek Technology Corporation
RT8101 12V Synchronous Buck PWM DC-DC Richtek Technology Corporation
RT8101A 12V Synchronous Buck PWM DC-DC Richtek Technology Corporation

Other Datasheets by Richtek

Part Number Description
RT8110 Compact Synchronous Buck DC/DC PWM Controller
RT8113 Single Phase VR11.1 PWM Controller
RT8100 Synchronous buck PWM DC/DC
RT8106 5V/12V Synchronous Buck PWM DC-DC Controller
RT8106A 5V/12V Synchronous Buck PWM DC-DC Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

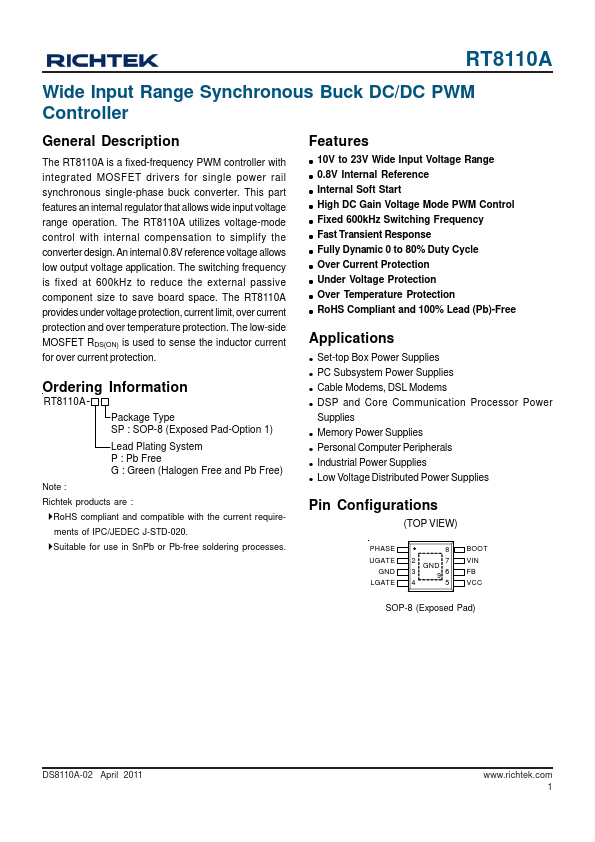

RT8110A Wide Input Range Synchronous Buck DC/DC PWM Controller General Description The RT8110A is a fixed-frequency PWM controller with integrated MOSFET drivers for single power rail synchronous single-phase buck converter. This part features an internal regulator that allows wide input voltage range operation. The RT8110A utilizes voltage-mode control with internal compensation to simplify the converter design. An internal 0.8V reference voltage allows low output voltage application. The switching frequency is fixed at 600kHz to reduce the external passive component size to save board space. The RT8110A provides under voltage protection, current limit, over current protection and over temperature protection.
