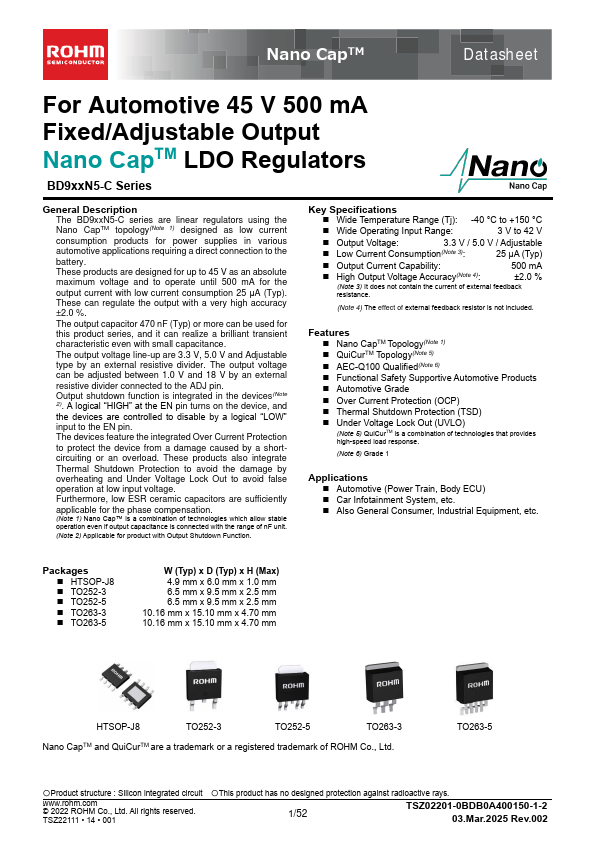

BD950N5WFP-C
Description
The BD9xxN5-C series are linear regulators using the Nano CapTM topology(Note 1) designed as low current consumption products for power supplies in various automotive applications requiring a direct connection to the battery. These products are designed for up to 45 V as an absolute maximum voltage and to operate until 500 mA for the output current with low current consumption 25 μA (Typ).
Key Features
- Nano CapTM Topology(Note
- QuiCurTM Topology(Note
- AEC-Q100 Qualified(Note
- Functional Safety Supportive Automotive Products
- Automotive Grade
- Over Current Protection (OCP)
- Thermal Shutdown Protection (TSD)
- Under Voltage Lock Out (UVLO) (Note
- QuiCurTM is a bination of technologies that provides high-speed load response. (Note
