BM61S41RFV-C - 1ch Gate Driver Providing Galvanic Isolation

Description

The BM61S41RFV-C is a gate driver with an isolation voltage of 3750 Vrms, I/O delay time of 65 ns, and minimum input pulse width of 60 ns.

It has the Under-Voltage Lockout (UVLO) function and Miller clamp function.

Isolation Voltage: Maximum Gate Drive Voltage:

Features

  • AEC-Q100 Qualified(Note 1 ).
  • Providing Galvanic Isolation.
  • Active Miller Clamping.
  • Under-Voltage Lockout Function.
  • UL1577 Recognized: File E356010 (Note 1) Grade1 Package SSOP-B10W W(Typ) x D(Typ) x H(Max) 3.5 mm x10.2 mm x 1.9 mm.

📥 Download Datasheet

Datasheet preview – BM61S41RFV-C

Datasheet Details

Part number BM61S41RFV-C
Manufacturer ROHM
File Size 1.02 MB
Description 1ch Gate Driver Providing Galvanic Isolation
Datasheet download datasheet BM61S41RFV-C Datasheet
Additional preview pages of the BM61S41RFV-C datasheet.

📁 Similar Datasheet

  • BM6203 - 100mA low power LDO (Bookly)
  • BM63 - Bluetooth 4.2 Stereo Audio Module (Microchip)
Other Datasheets by ROHM
  • BM61S40RFV-C - 1ch Gate Driver
  • BM6101FV-C - Isolation voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation
  • BM6102FV-C - 1ch Gate Driver Providing Galvanic Isolation
  • BM6103FV-C - 1ch Gate Driver Providing Galvanic Isolation
  • BM6104FV-C - Isolation voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation
  • BM6105FW-LBZ - Isolation voltage 2500Vrms 1ch Gate Driver Providing Galvanic Isolation
  • BM6108FV-LB - 1ch Gate Driver Providing Galvanic Isolation
  • BM6109FV-C - 1ch Gate Driver Providing Galvanic Isolation

Full PDF Text Transcription

Click to expand full text

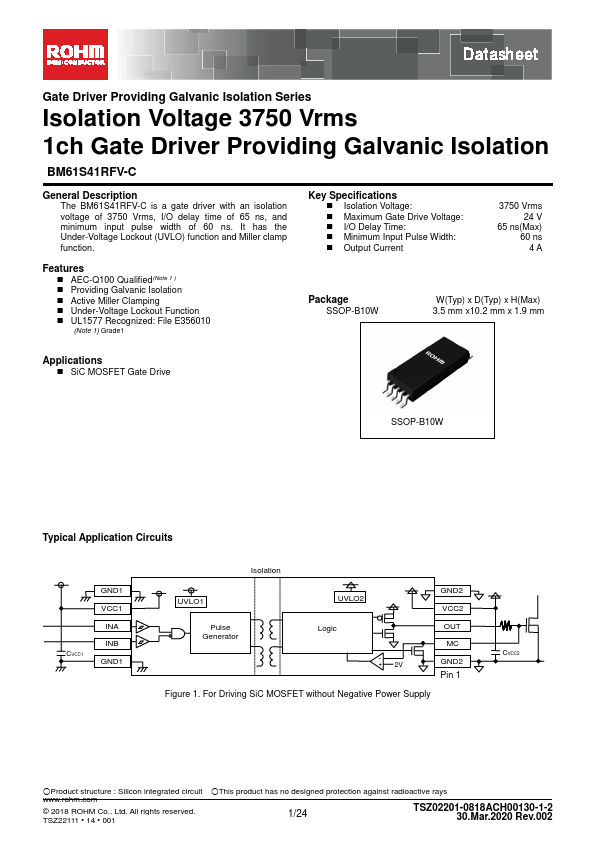

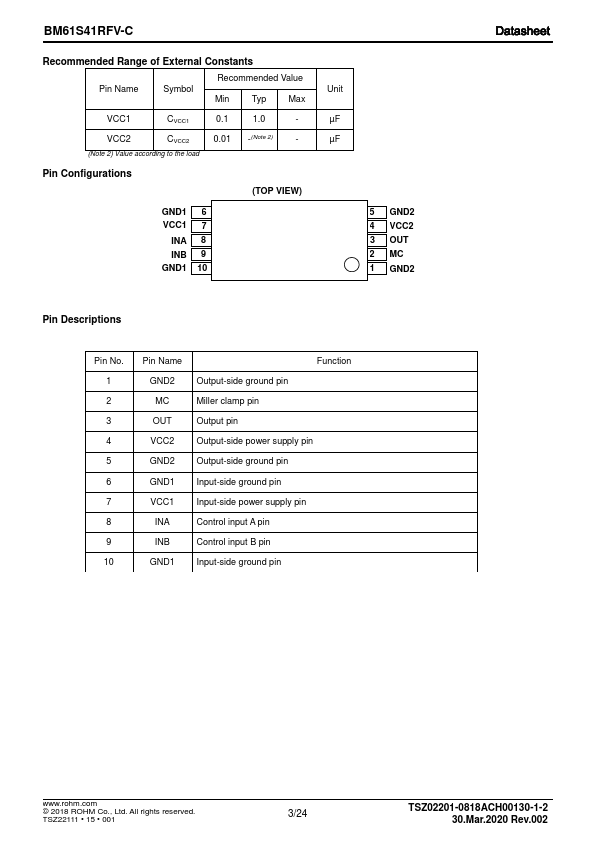

Datasheet Gate Driver Providing Galvanic Isolation Series Isolation Voltage 3750 Vrms 1ch Gate Driver Providing Galvanic Isolation BM61S41RFV-C General Description The BM61S41RFV-C is a gate driver with an isolation voltage of 3750 Vrms, I/O delay time of 65 ns, and minimum input pulse width of 60 ns. It has the Under-Voltage Lockout (UVLO) function and Miller clamp function. Key Specifications  Isolation Voltage:  Maximum Gate Drive Voltage:  I/O Delay Time:  Minimum Input Pulse Width:  Output Current 3750 Vrms 24 V 65 ns(Max) 60 ns 4A Features  AEC-Q100 Qualified(Note 1 )  Providing Galvanic Isolation  Active Miller Clamping  Under-Voltage Lockout Function  UL1577 Recognized: File E356010 (Note 1) Grade1 Package SSOP-B10W W(Typ) x D(Typ) x H(Max) 3.5 mm x10.2 mm x 1.
