BM85060FV - CRM Totem Pole PFC Controller IC

Datasheet Summary

Description

The BM85060FV is a critical conduction mode (CrM) power factor correction (PFC) controller IC designed to drive a bridgeless totem pole PFC topology.

Features

  • Critical conduction Mode (CrM) and Discontinuous Conduction Mode (DCM) Operation.
  • Burst Mode Operation at Very Light Loads.
  • Brownout Detection.
  • X Capacitor Discharge Function.
  • High Voltage Startup.
  • Dynamic Response Enhancer.
  • Protections.
  • Output Over Voltage Protection (Fast Over Voltage, Second Over Voltage).
  • Output Under Voltage Protection (UVP).
  • Input Over Voltage Protection (VAC OVP).
  • Overload and Peak Current Limit Prote.

📥 Download Datasheet

Datasheet preview – BM85060FV

Datasheet Details

Part number BM85060FV
Manufacturer ROHM
File Size 1.08 MB
Description CRM Totem Pole PFC Controller IC
Datasheet download datasheet BM85060FV Datasheet

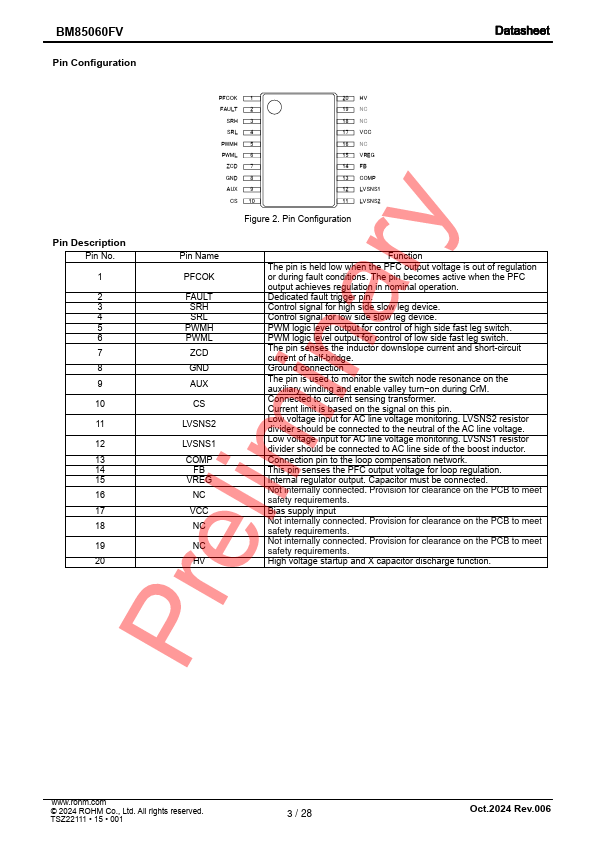

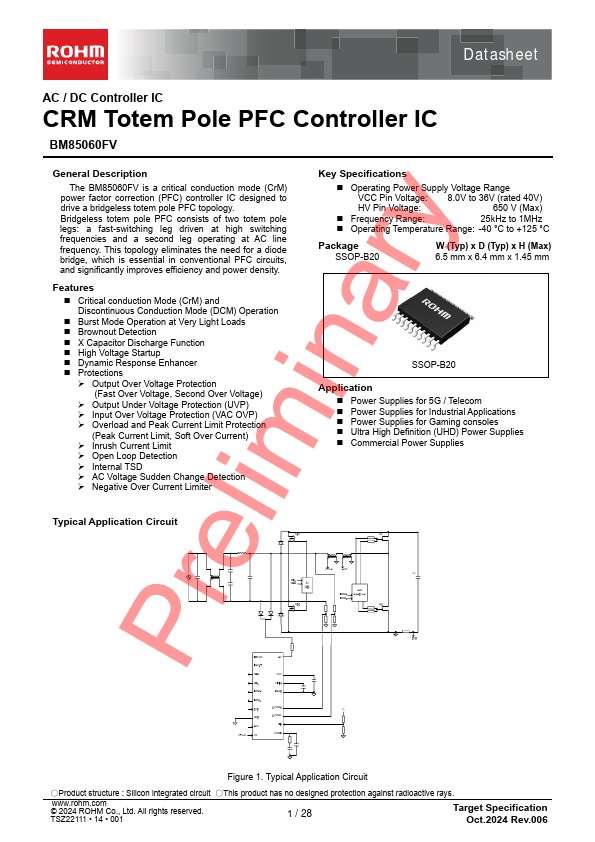

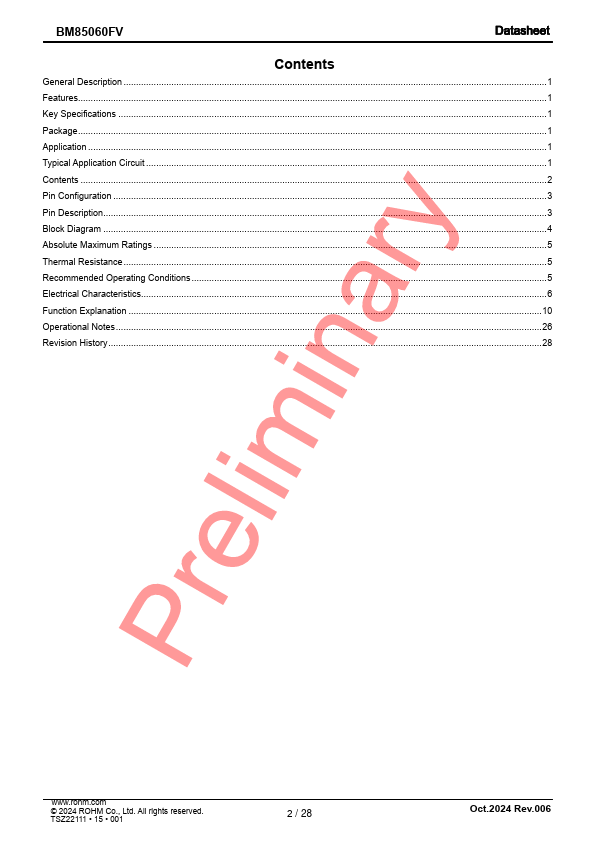

Additional preview pages of the BM85060FV datasheet.
