RS7E200BG

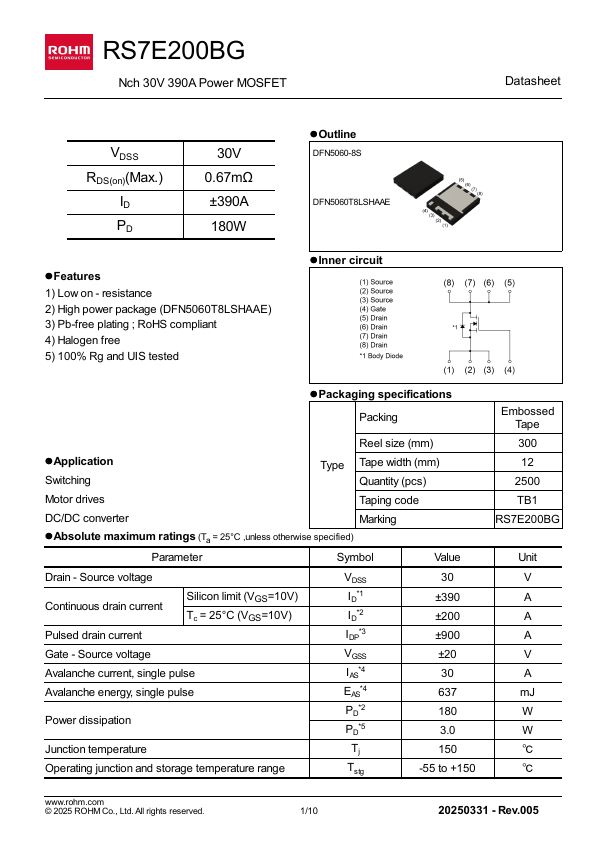

RS7E200BG is Nch 30V 390A Power MOSFET manufactured by ROHM.
Nch 30V 390A Power MOSFET
VDSS RDS(on)(Max.)
ID PD
30V 0.67mΩ ±390A 180W l Features
1) Low on
- resistance 2) High power package (DFN5060T8LSHAAE) 3) Pb-free plating ; Ro HS pliant 4) Halogen free 5) 100% Rg and UIS tested l Outline
DFN5060-8S DFN5060T8LSHAAE l Inner circuit l Packaging specifications Packing
Reel size (mm) l Application Switching
Type Tape width (mm) Quantity (pcs)
Motor drives
Taping code
DC/DC converter
Marking l Absolute maximum ratings (Ta = 25°C ,unless otherwise specified)
Parameter
Symbol
Value
Drain
- Source voltage
VDSS
Silicon limit (VGS=10V)
ID- 1
Continuous drain current
Tc = 25°C (VGS=10V)
ID- 2
Pulsed drain current
IDP- 3
Gate
- Source voltage
VGSS
Avalanche current, single pulse
IAS- 4
Avalanche energy, single pulse
EAS- 4
PD- 2 Power dissipation
PD- 5
Junction temperature
Tj
Operating junction and storage temperature range
Tstg
30 ±390 ±200 ±900 ±20 30 637 180 3.0 150 -55 to...
