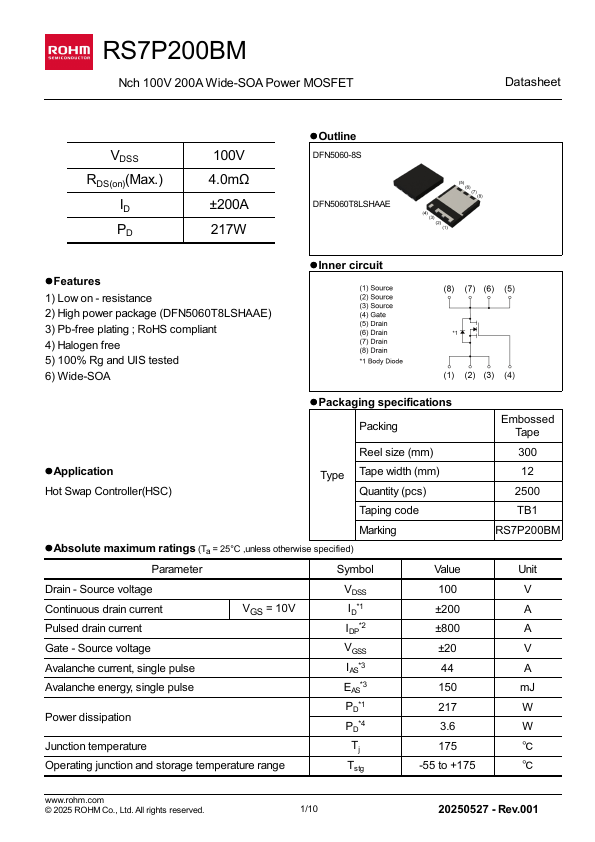

RS7P200BM
RS7P200BM is Nch 100V 200A Wide-SOA Power MOSFET manufactured by ROHM.
Nch 100V 200A Wide-SOA Power MOSFET
Datasheet l Outline
VDSS
100V
DFN5060-8S
RDS(on)(Max.)
4.0mΩ
±200A
DFN5060T8LSHAAE
217W
l Features
1) Low on
- resistance 2) High power package (DFN5060T8LSHAAE) 3) Pb-free plating ; Ro HS pliant 4) Halogen free 5) 100% Rg and UIS tested 6) Wide-SOA l Inner circuit l Packaging specifications Packing
Embossed Tape
Reel size (mm)
300 l Application Hot Swap Controller(HSC)
Type Tape width (mm) Quantity (pcs)
12 2500
Taping code
TB1
Marking
RS7P200BM l Absolute maximum ratings (Ta = 25°C ,unless otherwise specified)
Parameter
Symbol
Value
Unit
Drain
- Source voltage
VDSS
Continuous drain current
VGS = 10V
ID- 1
Pulsed drain current
IDP- 2
Gate
- Source...
