SCT2080KE - N-channel SiC power MOSFET

Key Features

  • 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant l.

📥 Download Datasheet

Datasheet Details

Part number SCT2080KE
Manufacturer ROHM
File Size 0.99 MB
Description N-channel SiC power MOSFET
Datasheet download datasheet SCT2080KE Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT2001 2 0mm Pitch Crimp Connector Scondar
SCT2001 3-Channel Constant Constant Driver StarChips
SCT2004 4-Channel High Constant Current Driver StarChips
SCT2004S 4-Channel Constant Current Driver StarChips
SCT2024 16-bit Serial-In/Parallel-Out Constant-Current LED Driver StarChips

Other Datasheets by ROHM

Part Number Description
SCT2080KEHR Automotive Grade N-channel SiC power MOSFET
SCT2120AF N-channel SiC power MOSFET
SCT2160KE N-channel SiC power MOSFET
SCT2160KEHR N-channel SiC power MOSFET
SCT2280KE N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

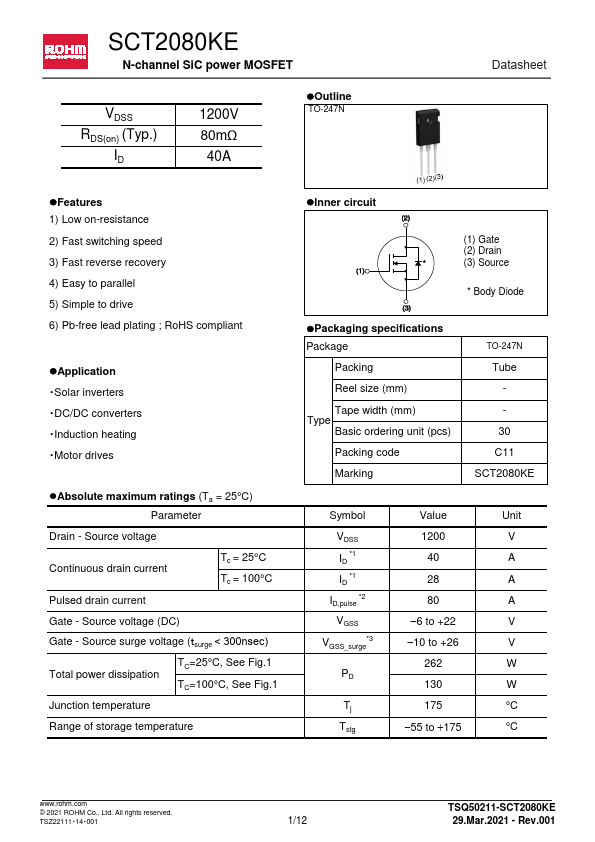

SCT2080KE N-channel SiC power MOSFET VDSS RDS(on) (Typ.) ID 1200V 80mΩ 40A lOutline TO-247N Datasheet lFeatures 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lApplication Solar inverters DC/DC converters Induction heating Motor drives lAbsolute maximum ratings (Ta = 25°C) Parameter Drain - Source voltage Continuous drain current Pulsed drain current Tc = 25°C Tc = 100°C Gate - Source voltage (DC) Gate - Source surge voltage (ｔsurge ˂ 300nsec) Total power dissipation TC=25°C, See Fig.1 TC=100°C, See Fig.
