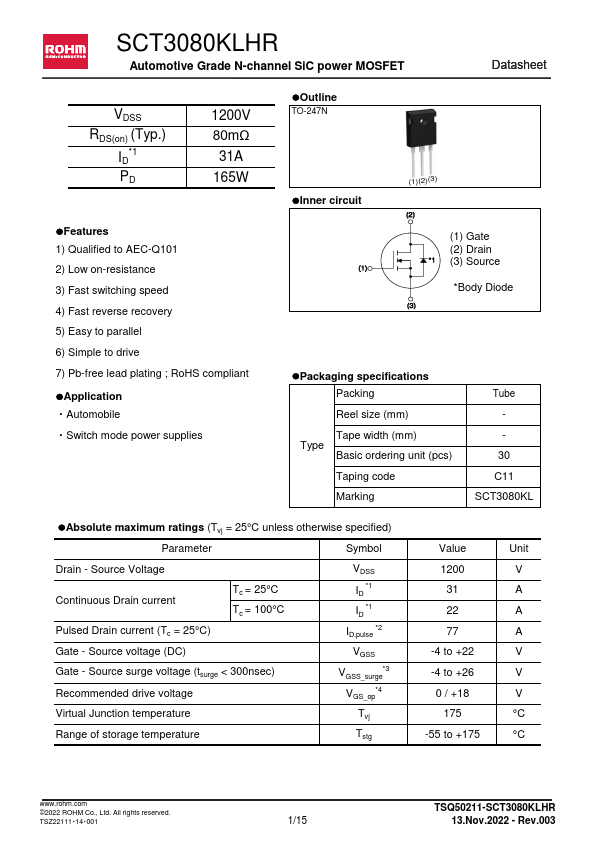

SCT3080KLHR
Automotive Grade N-channel Si C power MOSFET
VDSS RDS(on) (Typ.)
ID- 1 PD
1200V 80mΩ 31A 165W l Outline
TO-247N l Inner circuit
(1) (2) (3) l Features 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; Ro HS pliant l Application
- Automobile
- Switch mode power supplies
(1) Gate (2) Drain (3) Source
- Body Diode
Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. l Packaging specifications Packing
Reel size (mm)
Tape width (mm) Type
Basic ordering unit (pcs)
Taping code
Marking
Tube 30

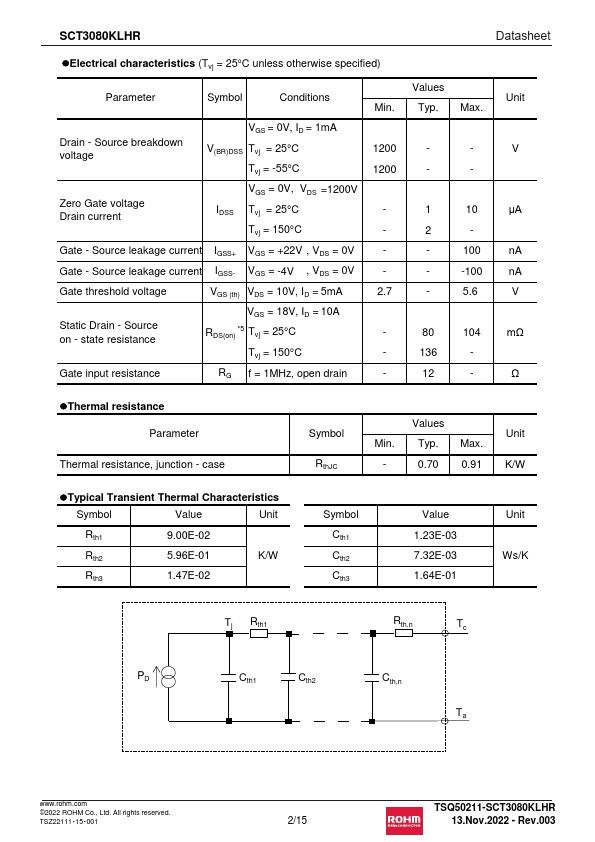

C11 SCT3080KL l Absolute maximum ratings (Tvj = 25°C unless otherwise specified)
Parameter
Symbol
Drain
- Source Voltage
Continuous Drain current
Pulsed Drain current (Tc = 25°C) Gate
- Source voltage (DC)
Tc = 25°C Tc = 100°C
Gate
- Source surge voltage (tsurge < 300nsec) Remended drive voltage
Virtual Junction...
