SCT3080KRHR - Automotive Grade N-channel SiC power MOSFET

Features

  • 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant l.

📥 Download Datasheet

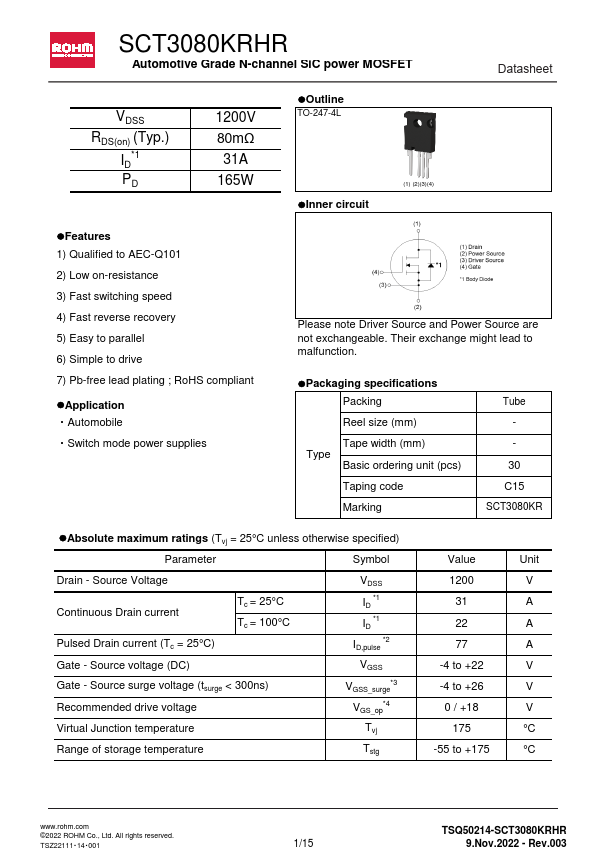

Datasheet preview – SCT3080KRHR

Datasheet Details

Part number SCT3080KRHR
Manufacturer ROHM
File Size 1.20 MB
Description Automotive Grade N-channel SiC power MOSFET
Datasheet download datasheet SCT3080KRHR Datasheet

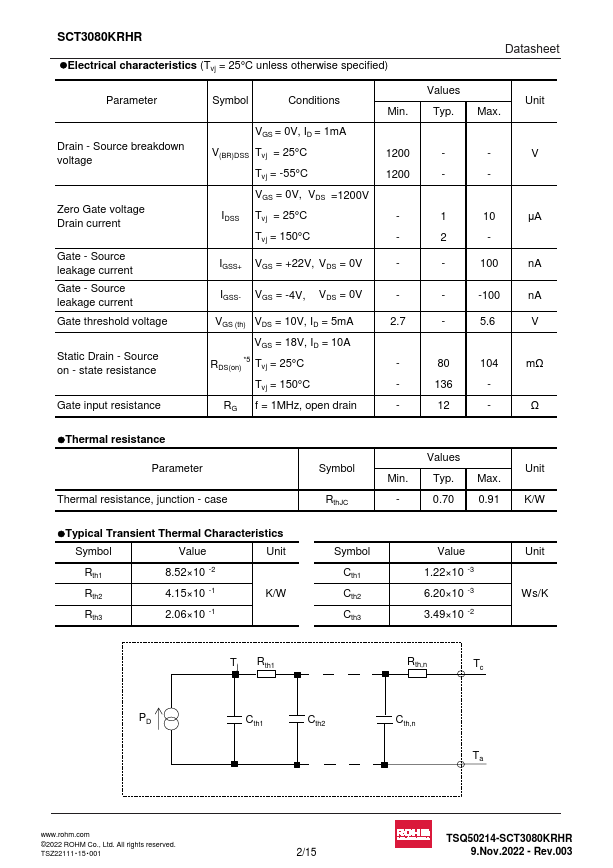

Additional preview pages of the SCT3080KRHR datasheet.

📁 Similar Datasheet

  • SCT3060 - N-Channel MOSFET (INCHANGE)
  • SCT30N120 - 1200V 45A Silicon carbide Power MOSFET (STMicroelectronics)
  • SCT31110 - Three Phase Solid State Relays (celduc-relais)
  • SCT316LD - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD03C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD05C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD12C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD16C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD24C - 300W Transient Voltage Supperssors Array (SeCoS)
  • SCT316LD36C - 300W Transient Voltage Supperssors Array (SeCoS)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
SCT3080KRHR Automotive Grade N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 80mΩ 31A 165W lOutline TO-247-4L lInner circuit (1) (2)(3)(4) lFeatures 1) Qualified to AEC-Q101 2) Low on-resistance 3) Fast switching speed 4) Fast reverse recovery 5) Easy to parallel 6) Simple to drive 7) Pb-free lead plating ; RoHS compliant lApplication Automobile Switch mode power supplies Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
