SCT4013DW7 - N-channel SiC power MOSFET

Datasheet Summary

Features

  • 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lInner circuit (Tab) (1) Gate (2) Driver Source.
  • 1 (3)~(7) Power Source (1) (Tab) Drain (2).
  • 1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

📥 Download Datasheet

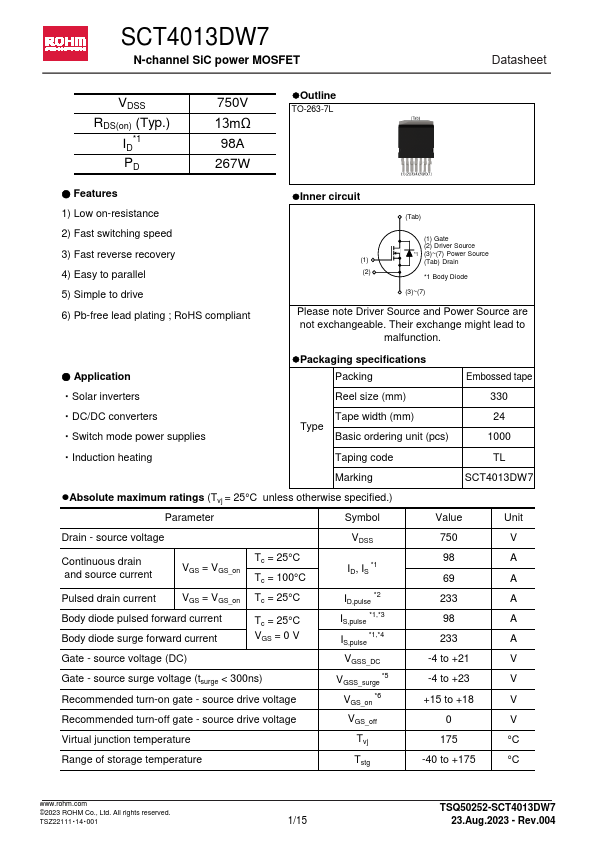

Datasheet preview – SCT4013DW7

Datasheet Details

Part number SCT4013DW7
Manufacturer ROHM
File Size 1.29 MB
Description N-channel SiC power MOSFET
Datasheet download datasheet SCT4013DW7 Datasheet

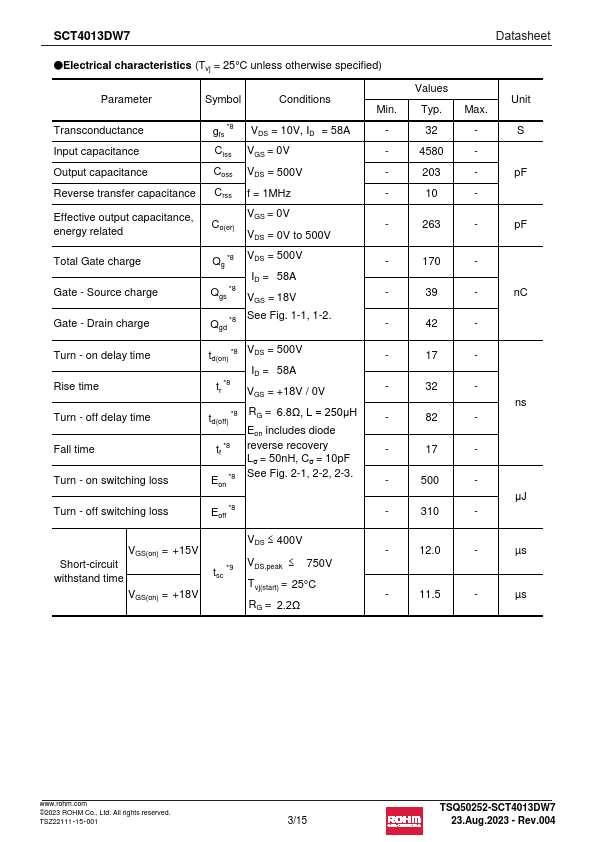

Additional preview pages of the SCT4013DW7 datasheet.

📁 Similar Datasheet

Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text
SCT4013DW7 N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 750V 13mΩ 98A 267W lOutline TO-263-7L ● Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lInner circuit (Tab) (1) Gate (2) Driver Source *1 (3)~(7) Power Source (1) (Tab) Drain (2) *1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
