SCT4018KE - N-channel SiC power MOSFET

Datasheet Summary

Features

s 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 1200V 18mΩ 81A 312W lOutline TO-247N lInner circuit (1) (1)(2()3) (2) (1) Gate (2) Drain.
1 (3) Source.
1 Body Diode 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant (3) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

Datasheet Details

Part number	SCT4018KE
Manufacturer	ROHM
File Size	1.23 MB
Description	N-channel SiC power MOSFET
Datasheet	SCT4018KE Datasheet
Additional preview pages of the SCT4018KE datasheet.

📁 Similar Datasheet

SCT-013-000 - Transformer (XiDi Technology)

SCT-013-000V - Split core current transformer (YHDC)

SCT-013-005 - Transformer (YHDC)

SCT-013-010 - Transformer (YHDC)

SCT-013-015 - Transformer (YHDC)

SCT-013-020 - Transformer (YHDC)

SCT-013-025 - Split core current transformer (YHDC)

SCT-013-030 - Transformer (XiDi Technology)

SCT-013-050 - Split core current transformer (YHDC)

SCT-013-060 - Split core current transformer (YHDC)

Full PDF Text Transcription

Click to expand full text

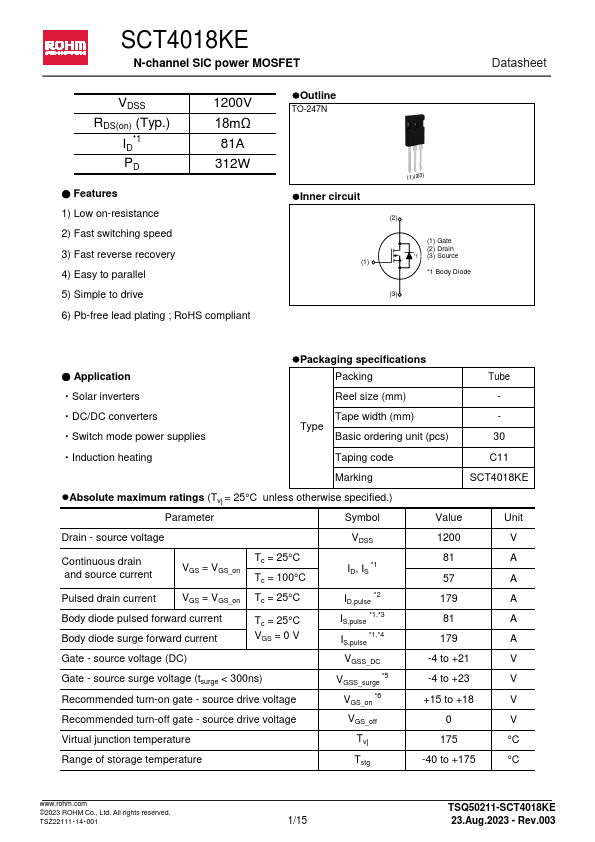

SCT4018KE N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD ● Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 1200V 18mΩ 81A 312W lOutline TO-247N lInner circuit (1) (1)(2()3) (2) (1) Gate (2) Drain *1 (3) Source *1 Body Diode 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant (3) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction. ● Application Solar inverters DC/DC converters Switch mode power supplies Induction heating lPackaging specifications Packing Reel size (mm) Tape width (mm) Type Basic ordering unit (pcs) Taping code Tube 30 C11 Marking SCT4018KE lAbsolute maximum ratings (Tvj = 25°C unless otherwise specified.
