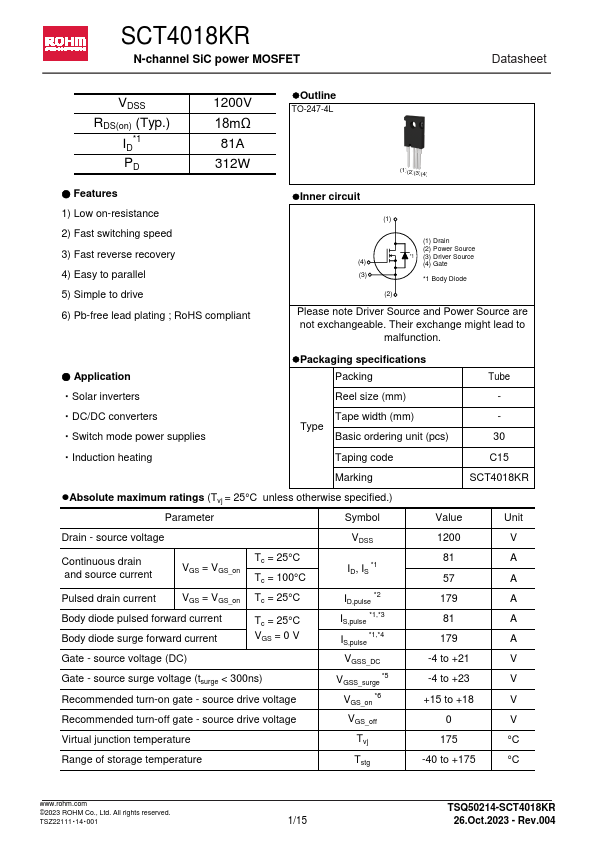

SCT4018KR
SCT4018KR is N-channel SiC power MOSFET manufactured by ROHM.
Features
1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; Ro HS pliant l Inner circuit
(1)
(1) Drain
(2) Power Source
- 1 (3) Driver Source
(4)
(4) Gate
(3)
- 1 Body Diode
(2)
Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
- Application
- Solar inverters
- DC/DC converters
- Switch mode power supplies
- Induction heating l Packaging specifications Packing
Reel size (mm)
Tape width (mm) Type
Basic ordering unit (pcs)
Taping code
Tube 30
C15
Marking
SCT4018KR l Absolute maximum ratings (Tvj = 25°C unless otherwise specified.)
Parameter
Symbol
Value
Unit
Drain
- source voltage
VDSS
Continuous drain and source current
VGS = VGS_on
Tc = 25°C Tc = 100°C
ID, IS
- 1
Pulsed drain...
