s 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel
750V 45mΩ 34A 115W
lOutline
TO-247N
lInner circuit
(1)
(1)(2()3)
(2)
(1) Gate (2) Drain.
1 (3) Source.
1 Body Diode
5) Simple to drive 6) Pb-free lead plating ; RoHS compliant
(3)
Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to
malfunction.
The following content is an automatically extracted verbatim text
from the original manufacturer datasheet and is provided for reference purposes only.
View original datasheet text

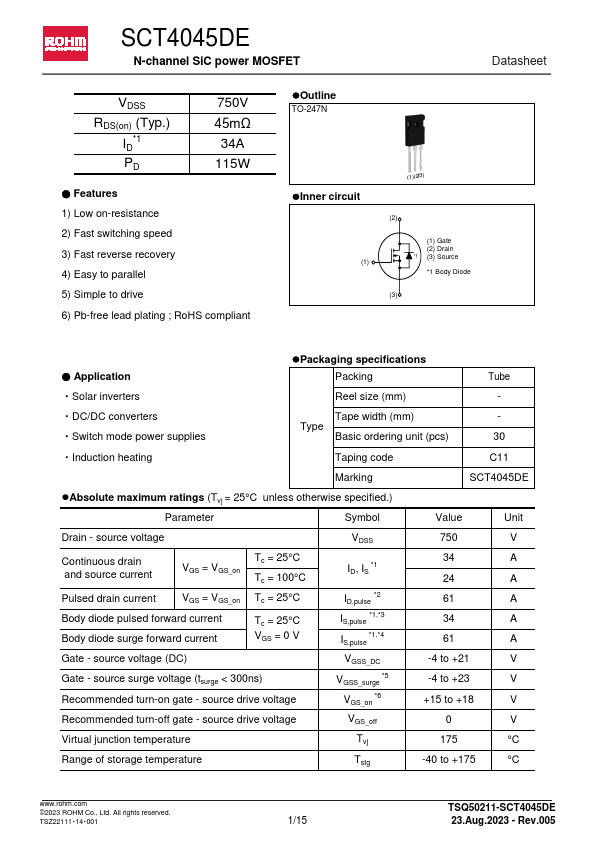

SCT4045DE
N-channel SiC power MOSFET
Datasheet
VDSS RDS(on) (Typ.)
ID*1 PD
● Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel
750V 45mΩ 34A 115W
lOutline
TO-247N
lInner circuit
(1)
(1)(2()3)
(2)
(1) Gate (2) Drain *1 (3) Source *1 Body Diode
5) Simple to drive 6) Pb-free lead plating ; RoHS compliant
(3)
Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to
malfunction.
● Application Solar inverters
lPackaging specifications Packing Reel size (mm)
Tube -
DC/DC converters Switch mode power supplies Induction heating
Tape width (mm)
-
Type
Basic ordering unit (pcs)
30
Taping code
C11
Marking
SCT4045DE
lAbsolute maximum ratings (Tvj = 25°C unless otherwise specified.

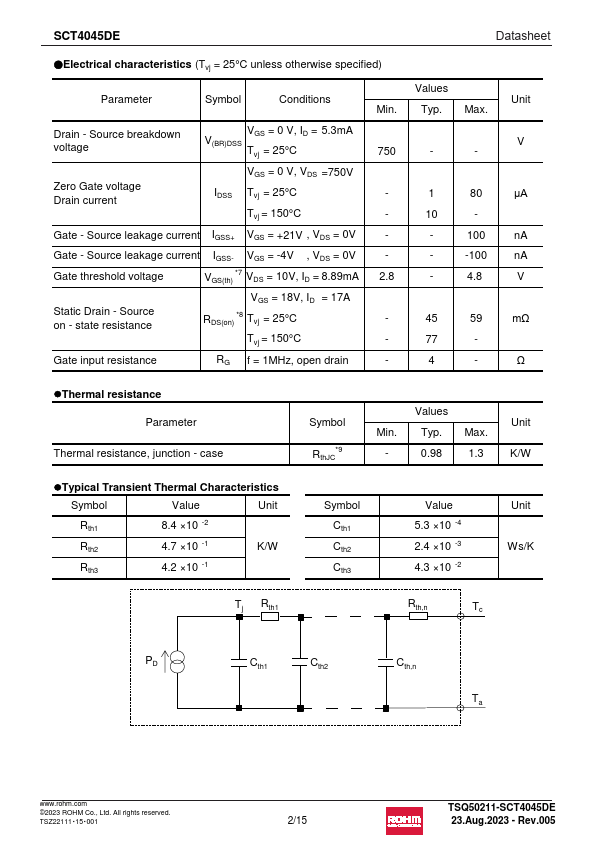

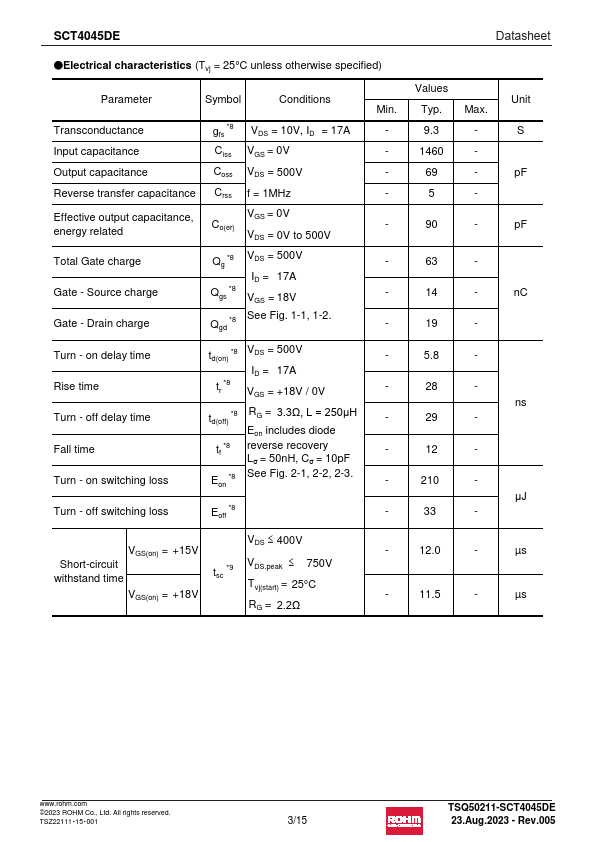

SCT4045DE Datasheet
