SCT4045DR - N-channel SiC power MOSFET

Datasheet Summary

Features

1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source.
1 (3) Driver Source (4) (4) Gate (3).
1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.

ROHM

📥 Download Datasheet

Datasheet Details

Part number	SCT4045DR
Manufacturer	ROHM
File Size	1.31 MB
Description	N-channel SiC power MOSFET
Datasheet	SCT4045DR Datasheet

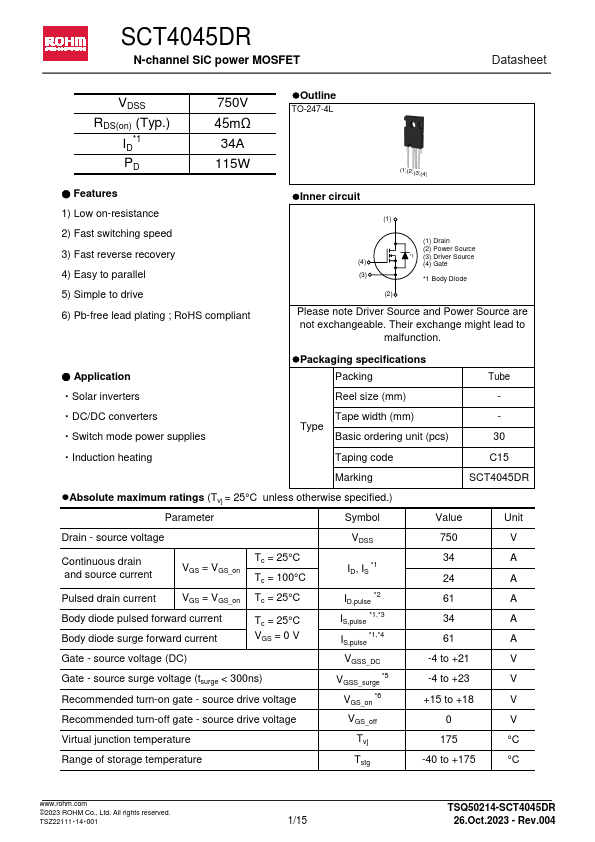

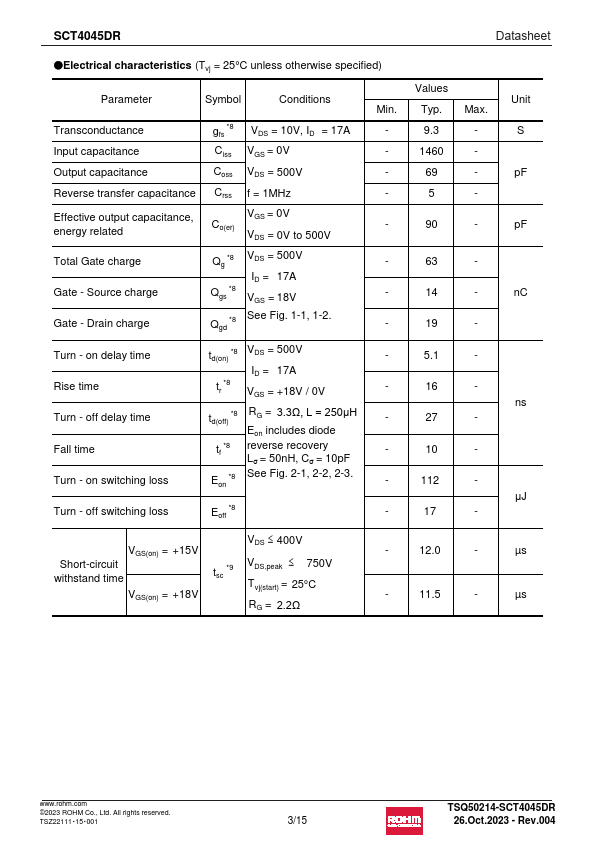

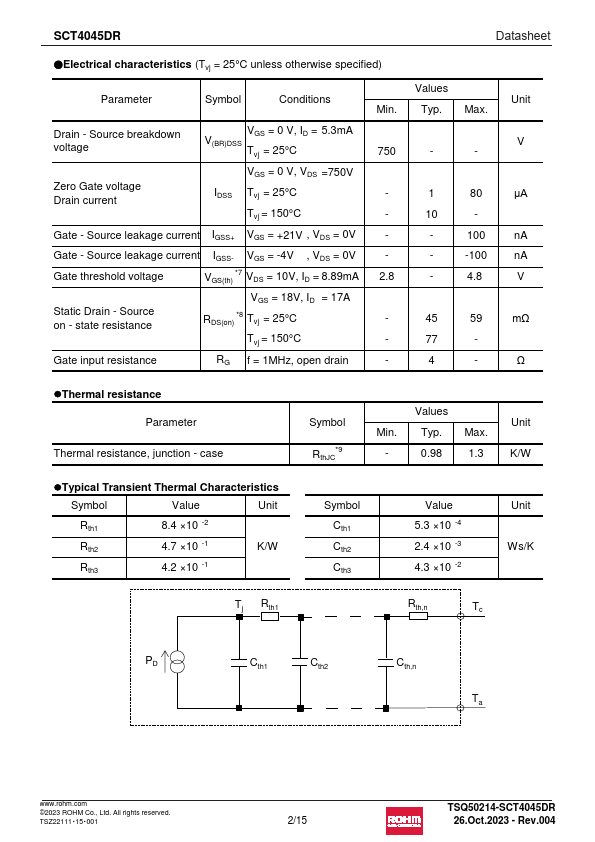

Additional preview pages of the SCT4045DR datasheet.

📁 Similar Datasheet

SCT-013-000 - Transformer (XiDi Technology)
SCT-013-000V - Split core current transformer (YHDC)
SCT-013-005 - Transformer (YHDC)
SCT-013-010 - Transformer (YHDC)
SCT-013-015 - Transformer (YHDC)
SCT-013-020 - Transformer (YHDC)
SCT-013-025 - Split core current transformer (YHDC)
SCT-013-030 - Transformer (XiDi Technology)
SCT-013-050 - Split core current transformer (YHDC)
SCT-013-060 - Split core current transformer (YHDC)

Other Datasheets by ROHM

SCT4045DRHR - Automotive Grade N-channel SiC power MOSFET
SCT4045DE - N-channel SiC power MOSFET
SCT4045DW7HR - Automotive Grade N-channel SiC power MOSFET
SCT4013DE - N-channel SiC power MOSFET
SCT4013DLL - N-channel SiC power MOSFET
SCT4013DR - N-channel SiC power MOSFET
SCT4013DRHR - Automotive Grade N-channel SiC power MOSFET
SCT4013DW7 - N-channel SiC power MOSFET

Full PDF Text Transcription

Click to expand full text

SCT4045DR N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 750V 45mΩ 34A 115W lOutline TO-247-4L (1)(2)(3)(4) ● Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lInner circuit (1) (1) Drain (2) Power Source *1 (3) Driver Source (4) (4) Gate (3) *1 Body Diode (2) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
