SCT4062KW7 - N-channel SiC power MOSFET

Product Overview

ROHM

Part number	SCT4062KW7
Manufacturer	ROHM
File Size	941.29 KB
Description	N-channel SiC power MOSFET
Datasheet	SCT4062KW7 Datasheet

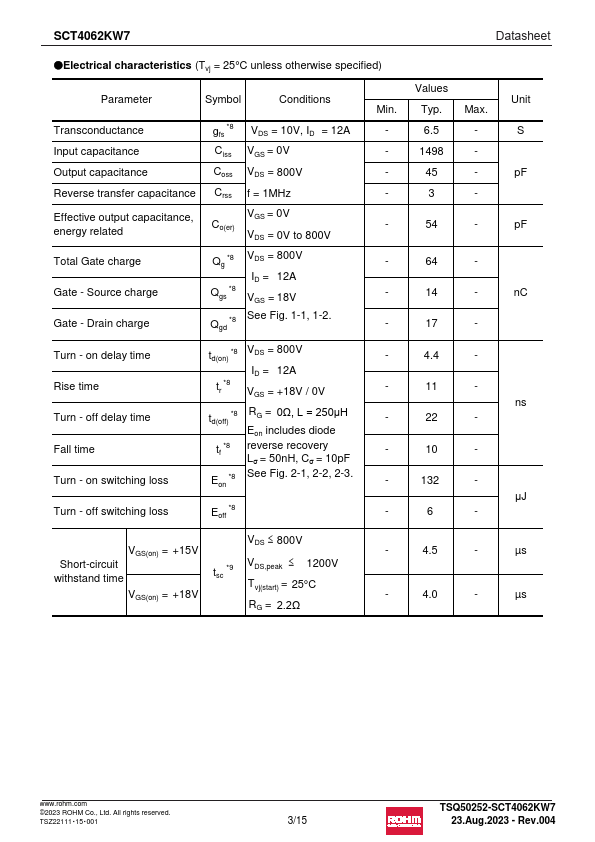

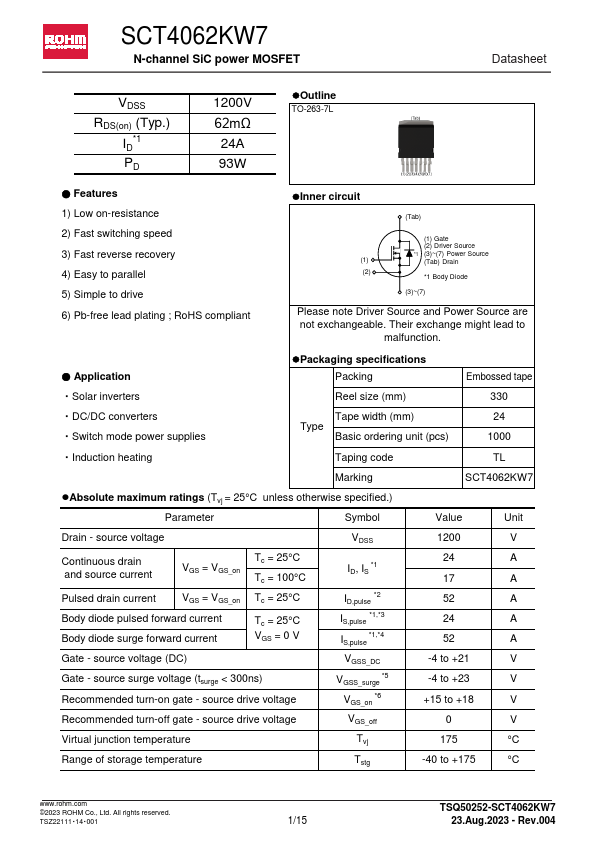

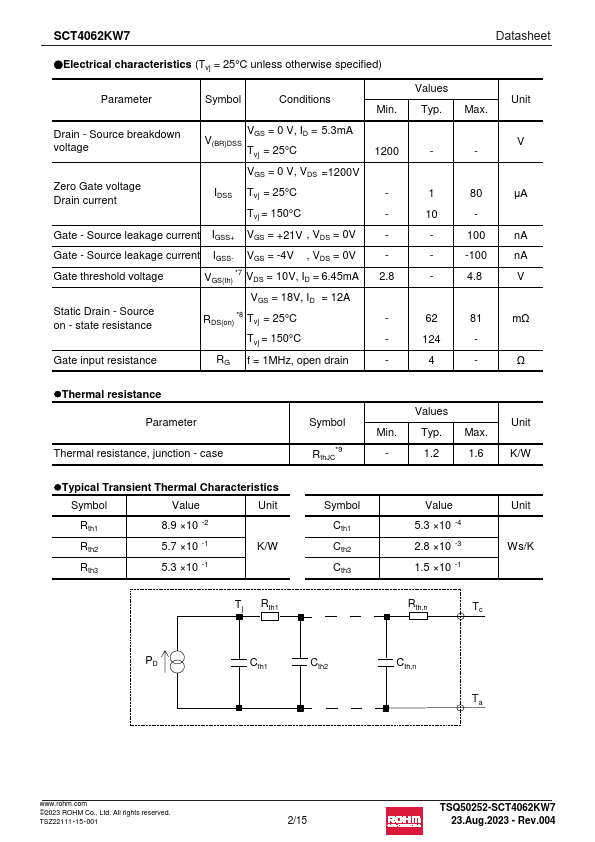

Additional preview pages of the SCT4062KW7 datasheet.

1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant lOutline TO-263-7L lInner circuit (Tab) (1) Gate (2) Driver Source.
1 (3)~(7) Pow er Source (1) (Tab) Drain (2).
1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
