SCT4062KWA - N-channel SiC power MOSFET

Key Features

  • 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant 7) Wide creepage distance = min.4.7 mm lOutline TO-263-7LA (Tab) lInner circuit (1) (2)(3) (4) (5)(6) (7) (Tab) (1) Gate (2) Driver Source.
  • 1 (3)~(7) Pow er Source (1) (Tab) Drain (2).
  • 1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
  • Applicati.

📥 Download Datasheet

Datasheet Details

Part number SCT4062KWA
Manufacturer ROHM
File Size 1.38 MB
Description N-channel SiC power MOSFET
Datasheet download datasheet SCT4062KWA Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SCT-013-000 Transformer XiDi Technology
SCT-013-000V Split core current transformer YHDC
SCT-013-005 Transformer YHDC
SCT-013-010 Transformer YHDC
SCT-013-015 Transformer YHDC

Other Datasheets by ROHM

Part Number Description
SCT4062KWAHR Automotive Grade N-channel SiC power MOSFET
SCT4062KW7 N-channel SiC power MOSFET
SCT4062KW7HR Automotive Grade N-channel SiC power MOSFET
SCT4062KE N-channel SiC power MOSFET
SCT4062KEHR Automotive Grade N-channel SiC power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

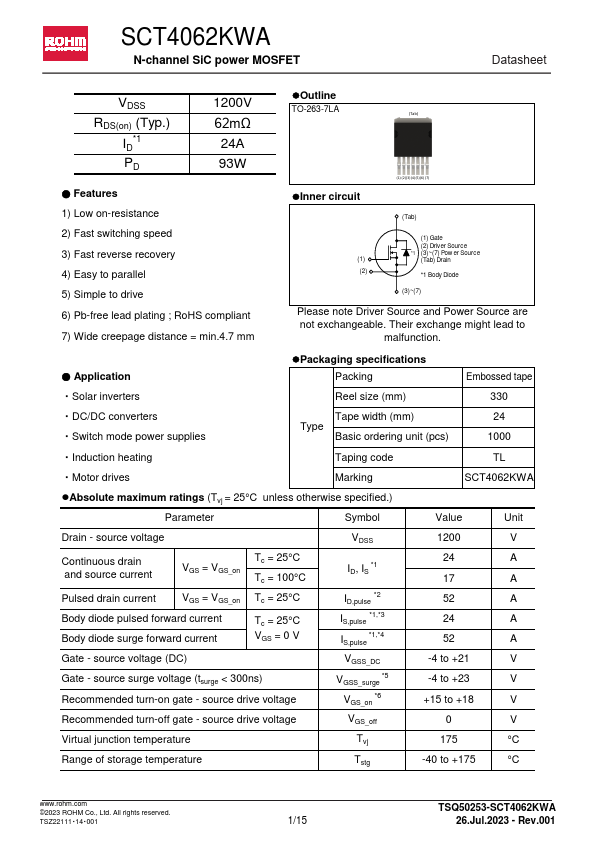

SCT4062KWA N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID*1 PD 1200V 62mΩ 24A 93W ● Features 1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; RoHS compliant 7) Wide creepage distance = min.4.7 mm lOutline TO-263-7LA (Tab) lInner circuit (1) (2)(3) (4) (5)(6) (7) (Tab) (1) Gate (2) Driver Source *1 (3)~(7) Pow er Source (1) (Tab) Drain (2) *1 Body Diode (3)~(7) Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
