SCT4065DR datasheet by ROHM.
| Part number | SCT4065DR |
|---|---|
| Datasheet | SCT4065DR-ROHM.pdf |
| File Size | 1.23 MB |
| Manufacturer | ROHM |
| Description | N-channel SiC power MOSFET |
|
|

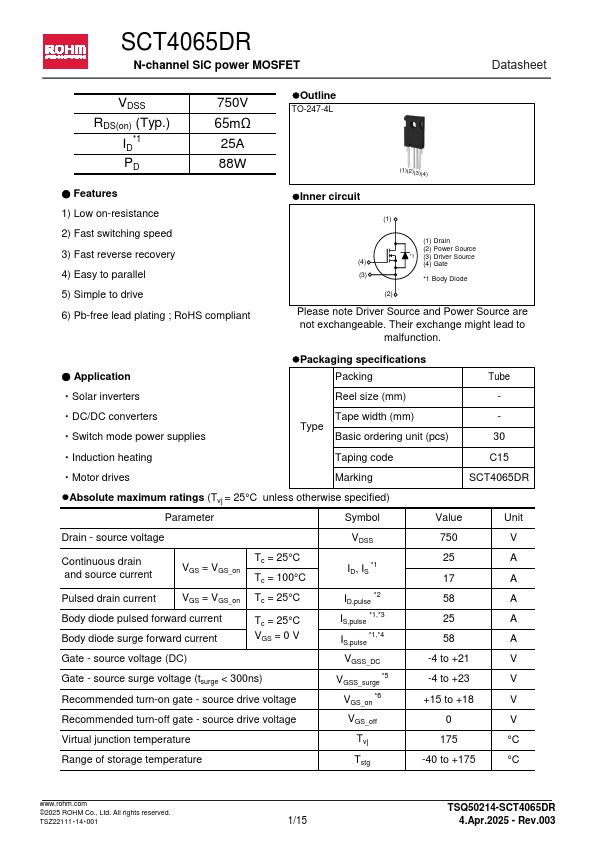

SCT4065DR N-channel SiC power MOSFET Datasheet VDSS RDS(on) (Typ.) ID 1 PD 750V 65mΩ 25A 88W lOutline TO-247-4L.
| Part Number | Description |
|---|---|
| SCT4062KE | N-channel SiC power MOSFET |
| SCT4062KEHR | Automotive Grade N-channel SiC power MOSFET |
| SCT4062KR | N-channel SiC power MOSFET |
| SCT4062KW7 | N-channel SiC power MOSFET |
| SCT4062KW7HR | Automotive Grade N-channel SiC power MOSFET |
| SCT4062KWA | N-channel SiC power MOSFET |
| SCT4062KWAHR | Automotive Grade N-channel SiC power MOSFET |
| SCT4013DE | N-channel SiC power MOSFET |
| SCT4013DLL | N-channel SiC power MOSFET |
| SCT4013DR | N-channel SiC power MOSFET |
