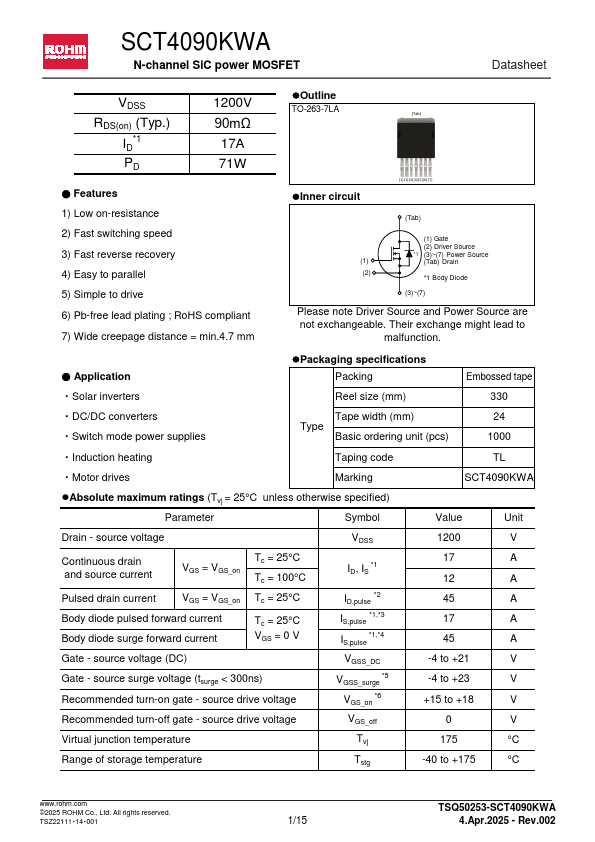

SCT4090KWA
SCT4090KWA is N-channel SiC power MOSFET manufactured by ROHM.
Features
1) Low on-resistance 2) Fast switching speed 3) Fast reverse recovery 4) Easy to parallel 5) Simple to drive 6) Pb-free lead plating ; Ro HS pliant 7) Wide creepage distance = min.4.7 mm l Outline
TO-263-7LA (Tab) l Inner circuit
(1) (2)(3) (4) (5)(6) (7)
(Tab)
(1) Gate
(2) Driver Source
- 1 (3)~(7) Power Source
(1)
(Tab) Drain
(2)
- 1 Body Diode
(3)~(7)
Please note Driver Source and Power Source are not exchangeable. Their exchange might lead to malfunction.
- Application
- Solar inverters
- DC/DC converters
- Switch mode power supplies
- Induction heating
- Motor drives l Packaging specifications Packing
Reel size (mm)
Tape width (mm) Type
Basic ordering unit (pcs)
Taping code
Marking
Embossed tape 330 24 1000 TL
SCT4090KWA l Absolute maximum ratings (Tvj = 25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Drain
- source voltage
VDSS
Continuous drain and source current
VGS = VGS_on
Tc = 25°C Tc = 100°C
ID, IS
-...
