UDZSTF4.7B - Zener diode

Datasheet Summary

Features

  • Compact, 2-pin mini-mold type for high-density mounting. (UMD2) 2) High reliability. 3) Can be mounted automatically, using chip mounter.
  • Dimensions (Unit : mm) 1.25±0.1 0.1±0.1 　　　 0.05.
  • Construction Silicon epitaxial planar 0.3±0.05 ROHM : UMD2 JEDEC : S0D-323 JEITA : SC-90/A dot (year week factory) EX. UDZSTF3.6B 0.7±0.2 　　　 0.1 1.7±0.1for 2.5±0.2 0.8MIN. 2.1 AEC-Q101 Qualified.
  • Land size figure (Unit : mm) 0.9MIN. UMD2.
  • Structure.
  • Taping specifications (Unit :.

📥 Download Datasheet

Datasheet preview – UDZSTF4.7B

Datasheet Details

Part number UDZSTF4.7B
Manufacturer ROHM
File Size 1.36 MB
Description Zener diode
Datasheet download datasheet UDZSTF4.7B Datasheet

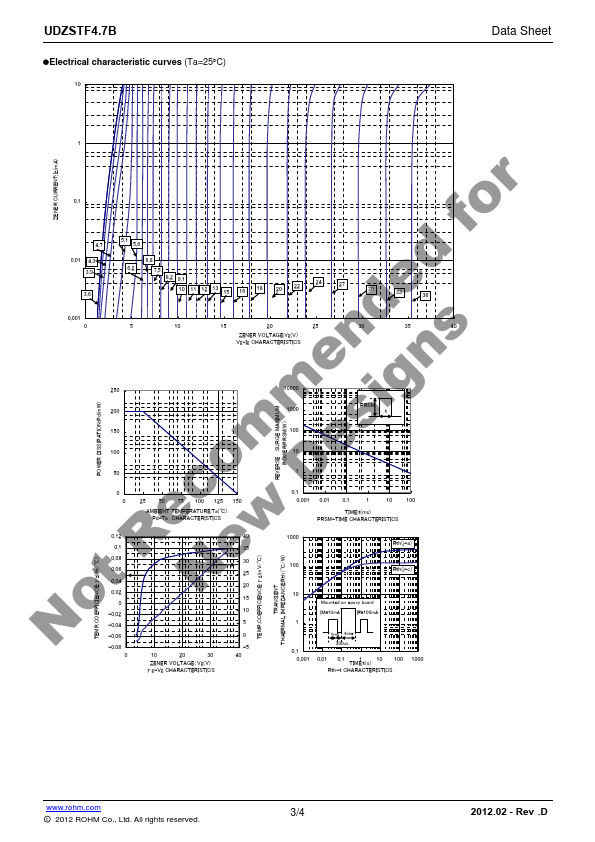

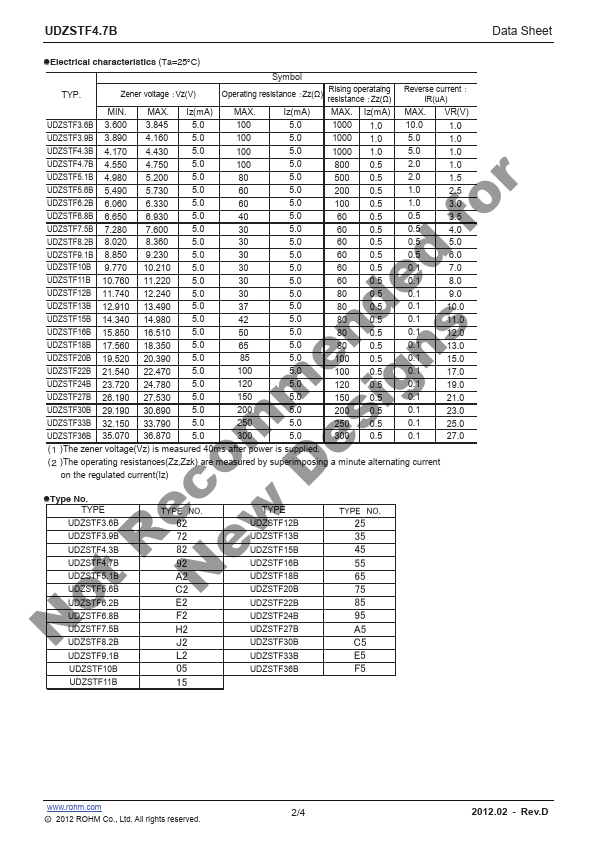

Additional preview pages of the UDZSTF4.7B datasheet.

📁 Similar Datasheet

  • UDZS10B - ZENER DIODES (TIPTEK)
  • UDZS10B - Zener Voltage Regulators (MSV)
  • UDZS10B - Surface Mount Zener Diodes (WEITRON)
  • UDZS10B - ZENER VOLTAGE REGULATORS (AiT Components)
  • UDZS10B - SMD Zener Diodes (TAITRON)
  • UDZS10B - Zener Diodes (Taiwan Semiconductor)
  • UDZS10B - ZENER DIODES (EIC)
  • UDZS10B - SURFACE MOUNT ZENER DIODE (LITE-ON)
  • UDZS10VB - Zener Diode (Taiwan Semiconductor)
  • UDZS10VB - SURFACE MOUNT ZENER DIODE (Rectron)
Other Datasheets by ROHM

Full PDF Text Transcription

Click to expand full text

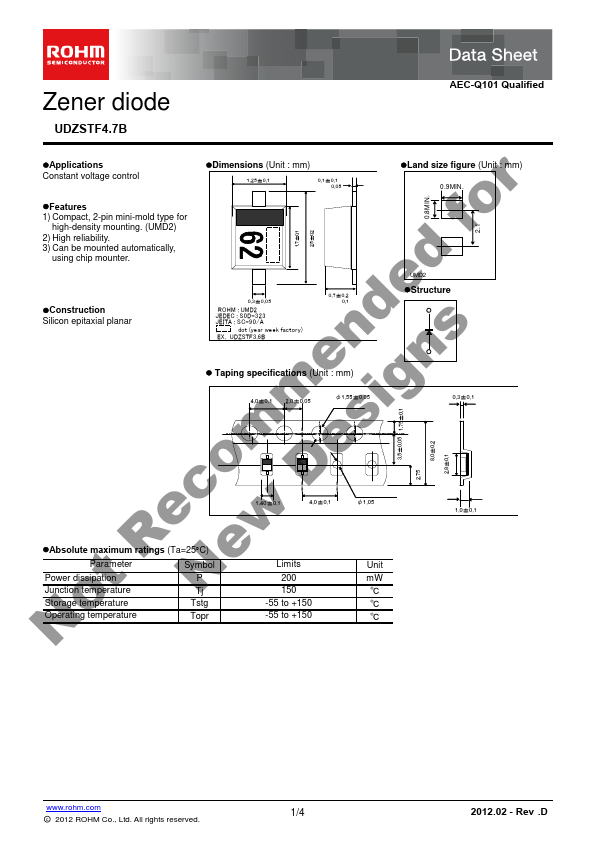

3.5±0.05NotNeRewcDoem1.75±0.1simgennsded 2.75 8.0±0.2 2.8±0.1 Zener diode UDZSTF4.7B Applications Constant voltage control Features 1) Compact, 2-pin mini-mold type for high-density mounting. (UMD2) 2) High reliability. 3) Can be mounted automatically, using chip mounter. Dimensions (Unit : mm) 1.25±0.1 0.1±0.1 　　　 0.05 Construction Silicon epitaxial planar 0.3±0.05 ROHM : UMD2 JEDEC : S0D-323 JEITA : SC-90/A dot (year week factory) EX. UDZSTF3.6B 0.7±0.2 　　　 0.1 1.7±0.1for 2.5±0.2 0.8MIN. 2.1 AEC-Q101 Qualified Land size figure (Unit : mm) 0.9MIN. UMD2 Structure  Taping specifications (Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.05 0.3±0.1 1.40±0.1 4.0±0.1 φ1.
