REX012864Q
REX012864Q is OLED manufactured by Raystar.
曜凌光電股份有限公司 Raystar Optronics, Inc.
T: +886-4-2565-0761 | F: +886-4-2565-0760 salescontact@raystar-optronics. | .raystar-optronics.

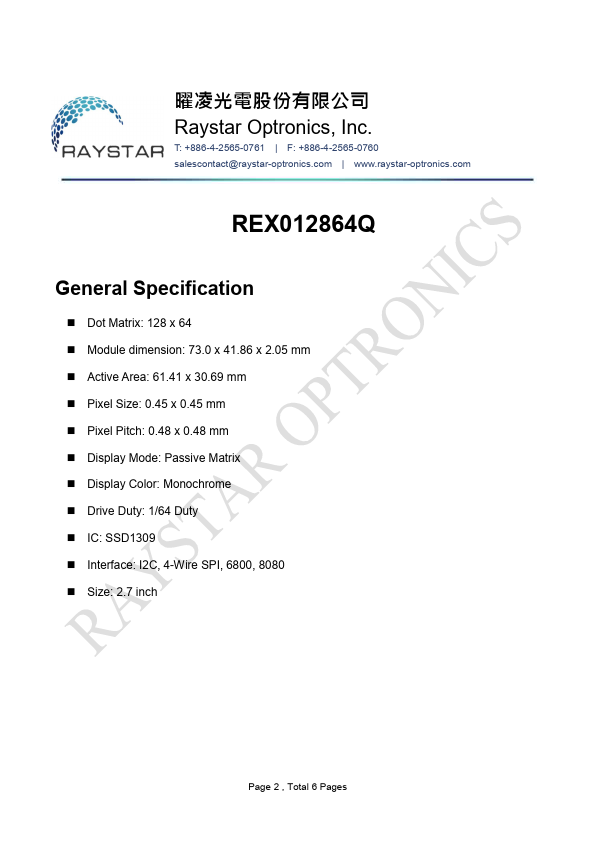

General Specification
- Dot Matrix: 128 x 64
- Module dimension: 73.0 x 41.86 x 2.05 mm
- Active Area: 61.41 x 30.69 mm
- Pixel Size: 0.45 x 0.45 mm
- Pixel Pitch: 0.48 x 0.48 mm
- Display Mode: Passive Matrix
- Display Color: Monochrome
- Drive Duty: 1/64 Duty
- IC: SSD1309
- Interface: I2C, 4-Wire SPI, 6800, 8080
- Size: 2.7 inch
Page 2 , Total 6 Pages

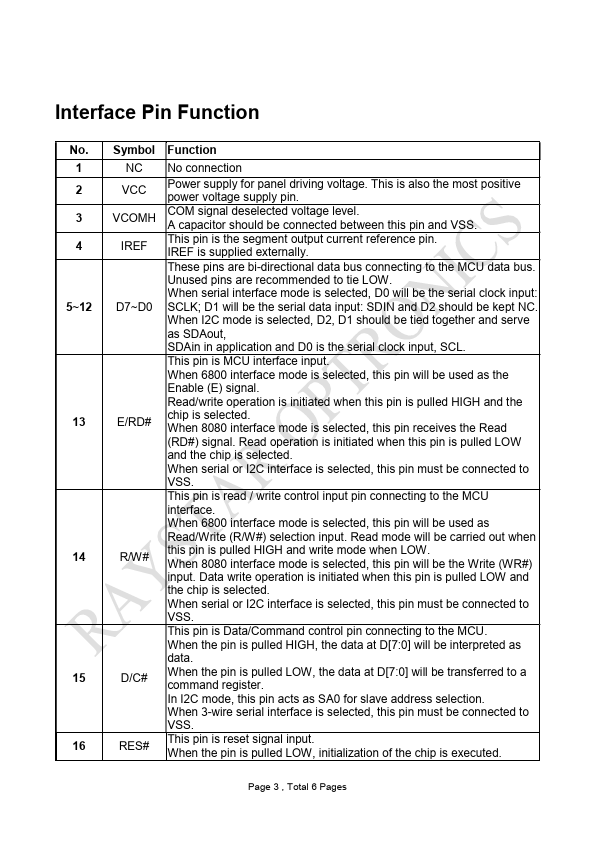

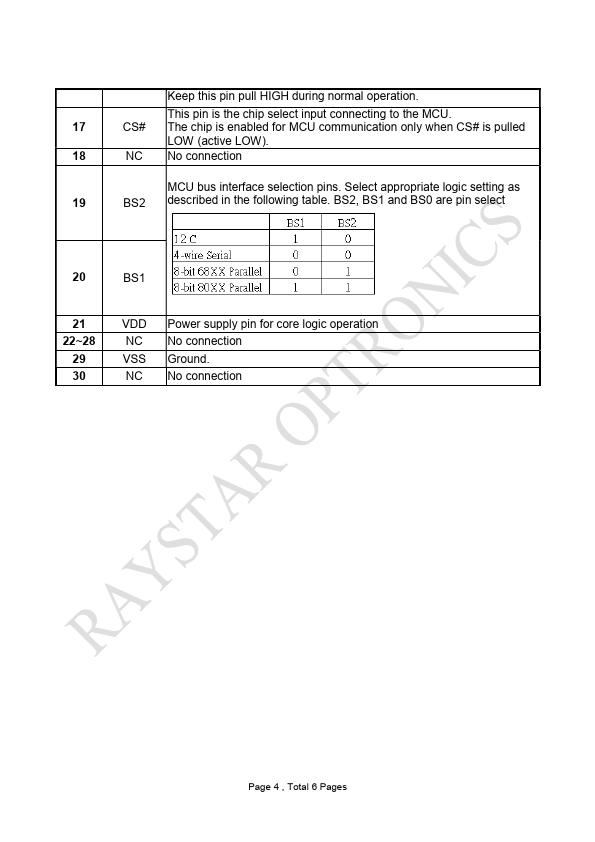

Interface Pin Function
No. 1 2 3 4
5~12
15 16
Symbol NC VCC
VH IREF D7~D0
E/RD#
R/W#
D/C# RES#
Function
No connection
Power supply for panel driving voltage. This is also the...
