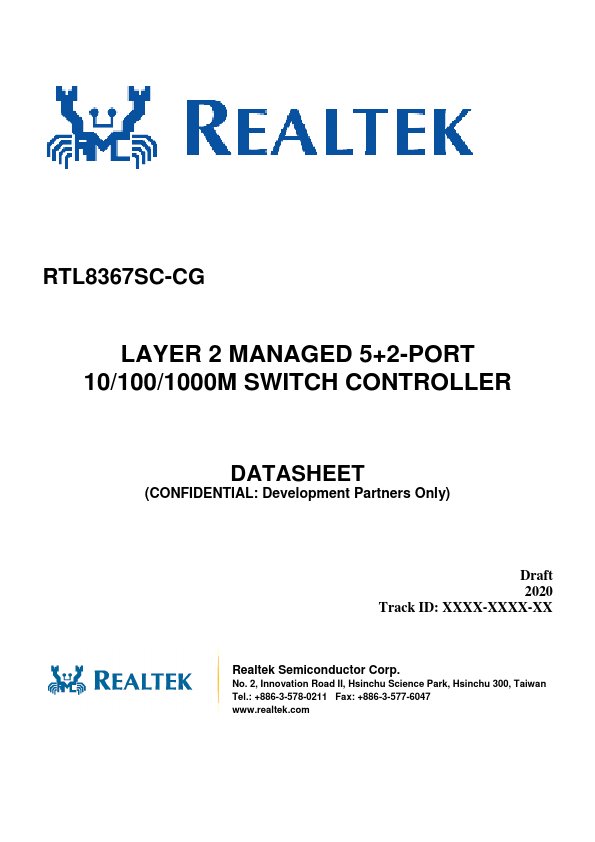

RTL8367SC-CG
Overview
- Single-chip 5+2-port 10/100/1000M nonblocking switch architecture
- Embedded 5-port 10/100/1000Base-T PHY
- Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
- Extra Interface (Extension GMAC1 and Extension GMAC2) supports; High SGMII (3.125GHz) Interface; SGMII (1.25GHz) Interface
- Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
- Supports 9216-byte jumbo packet length forwarding at wire speed
- Realtek Cable Test (RTCT) function
- Supports 96-entry ACL Rules; Search keys support physical port, Layer2, Layer3, and Layer4 information; Actions include mirror, redirect, dropping, priority adjustment, traffic policing, CVLAN decision, and SVLAN assignment GPIO control, force output tag format, interrupt and logging counter; Supports five types of user defined ACL rule format for 96 ACL rules; Optional per-port enable/disable of ACL function; Optional setting of per-port action to take when ACL mismatch
- Supports IEEE 802.1Q VLAN; Supports 4K VLANs and 32 Extra Enhanced VLANs; Supports Un-tag definition in each VLAN; Supports VLAN policing and VLAN forwarding decision Layer 2 Managed 5+2-Port 10/100/1000M Switch Controller; Port-based, Tag-based, and Protocol-based VLAN; Up to 4 Protocol-based VLAN entries; Per-port and per-VLAN egress VLAN tagging and un-tagging
- Supports IVL, SVL, and IVL/SVL; 2K-entry MAC address table with 4-way hash algorithm; Up to 2K-entry L2/L3 Filtering Database; Per-port MAC learning limitation; System-based MAC learning limitation
