Rectron Semiconductor BC846S
DUAL TRANSISTOR
| Part No. | BC846S |
|---|---|
| Datasheet | BC846S Download |
| Manufacturer |  Rectron Semiconductor |
| Description | DUAL TRANSISTOR |
| Buy | Stock & Price |
FEATURES
z This device is designed for general purpose amplifier applications z High Stability and High Reliability SOT-363MECHANICAL DATA

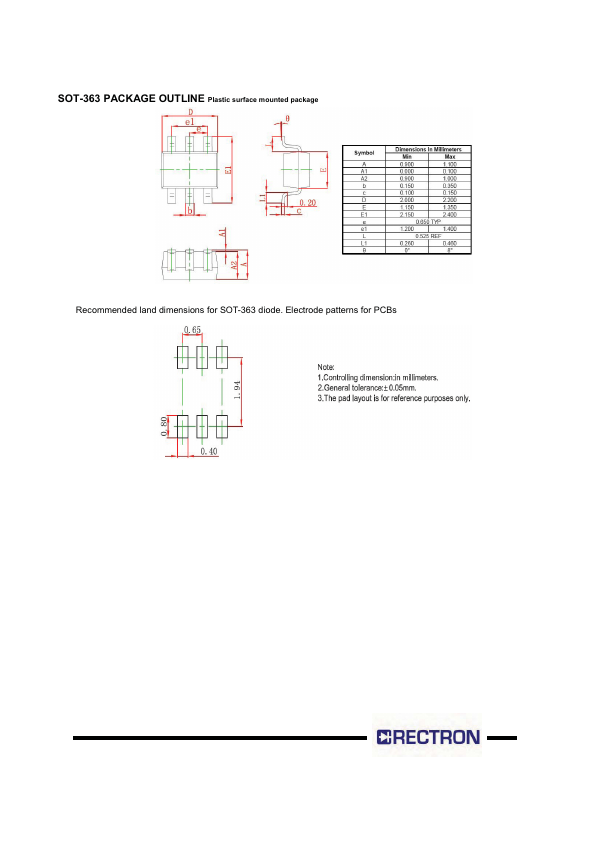

z SOT-363 Small Outline Plastic Package z Epoxy UL: 94V-0 z Mounting Position: Any Marking: 4FtMAXIMUM RATINGS
& Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Parameters Symbol Value Unit Collector-Base Voltage VCBO 80 V Collector-Emitter Voltage VCEO 65 V Emitter -Base Voltage VEBO 6 V Collector Current-Continuous IC 100 mA Collector Power Dissipation PC 200 mW Junction Temperature Tj 150 ć Storage Temperature Tstg -55-+150 ć Thermal resistance From junction to ambient RθJA 625 ć/WELECTRICAL CHARACTERISTICS
(Ratings at 25℃ ambient temperature unless otherwise specified). Parameter Symbols Test Condition Min Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation volt...
