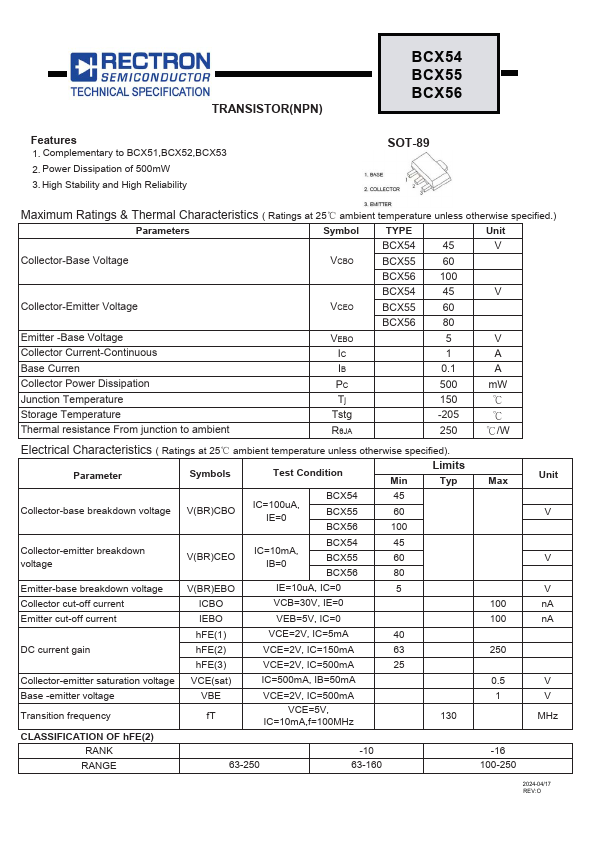

Rectron Semiconductor BCX55
NPN TRANSISTOR
| Part No. | BCX55 |
|---|---|
| Datasheet | BCX55 Download |
| Manufacturer |  Rectron Semiconductor |
| Description | NPN TRANSISTOR |
| Buy | Stock & Price |
FEATURES
1. Complementary to BCX51,BCX52,BCX53 2. Power Dissipation of 500mW 3. High Stability and High Reliability SOT-89MAXIMUM RATINGS
& Thermal Characteristics ( Ratings at 25ć ambient temperature unless otherwise specified.) Parameters Symbol TYPE Unit BCX54 45 V Collector-Base Voltage VCBO BCX55 60 BCX56 100 BCX54 45 V Collector-Emitter Voltage VCEO BCX55 60 BCX56 80 Emitter -Base Voltage VEBO 5 V Collector Current-Continuous IC 1 A Base Curren IB 0.1 A Collector Power Dissipation PC 500 mW Junction Temperature Tj 150 ɗ Storage Temperature Tstg -205 ɗ Thermal resistance From junction to ambient RθJA 250 ɗ/WELECTRICAL CHARACTERISTICS
( Ratings at 25ć ambient temperature unless otherwise specified). Parameter Symbols Test Condition Limits Min Typ BCX54 45 Collector-base breakdown voltage V(BR)CBO IC=100uA, IE=0 BCX55 60 BCX56 100 Collector-emitter breakdown voltage BCX54 45 V(BR)CEO IC=10mA, IB=0 BCX55 60 BCX56 80 Emitter-base breakdown voltage V(BR)EBO IE=10uA, IC=0 5 Collector...
