Datasheet Summary
DTA114EM/ EE/EUA/EKA/ ECA/ESA
DIGITAL TRANSISTOR (PNP)

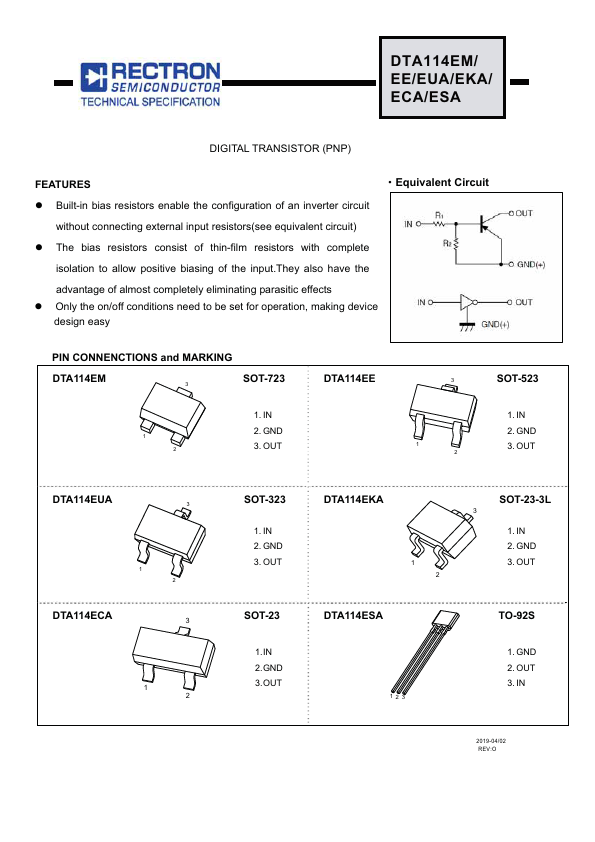

Features gEquivalent Circuit z Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit) z The bias resistors consist of thin-film resistors with plete isolation to allow positive biasing of the input.They also have the advantage of almost pletely eliminating parasitic effects z Only the on/off conditions need to be set for operation, making device design easy
PIN CONNENCTIONS and MARKING
DTA114EM
SOT-723
1. IN 2. GND 3. OUT
DTA114EE
SOT-523
1. IN 2. GND 3. OUT
DTA114EUA
SOT-323
1. IN 2. GND...
