DTA114ESA Datasheet PNP Digital Transistor

Manufacturer: Rectron

Overview: DTA114EM/ EE/EUA/EKA/ ECA/ESA DIGITAL TRANSISTOR (PNP).

This datasheet includes multiple variants, all published together in a single manufacturer document.

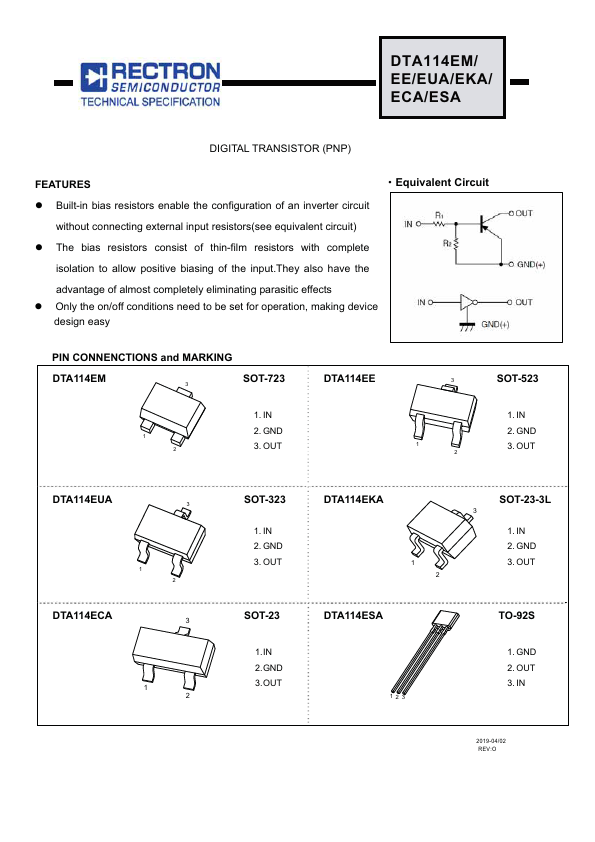

DTA114ESA datasheet preview

Datasheet Details

Part number	DTA114ESA
Manufacturer	Rectron
File Size	0.99 MB
Description	PNP DIGITAL TRANSISTOR
Datasheet	DTA114ESA DTA114EM Datasheet (PDF)

Key Features

gEquivalent Circuit z Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit) z The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects z Only the on/off conditions need to be set for operation, making device design easy PIN.
