DTA114ESA - PNP Digital Transistor

This page provides the datasheet information for the DTA114ESA, a member of the DTA114EM PNP Digital Transistor family.

Product Overview

Taiwan Semiconductor

Part number	DTA114ESA
Manufacturer	Taiwan Semiconductor
File Size	110.62 KB
Description	PNP Digital Transistor
Datasheet	DTA114ESA Datasheet

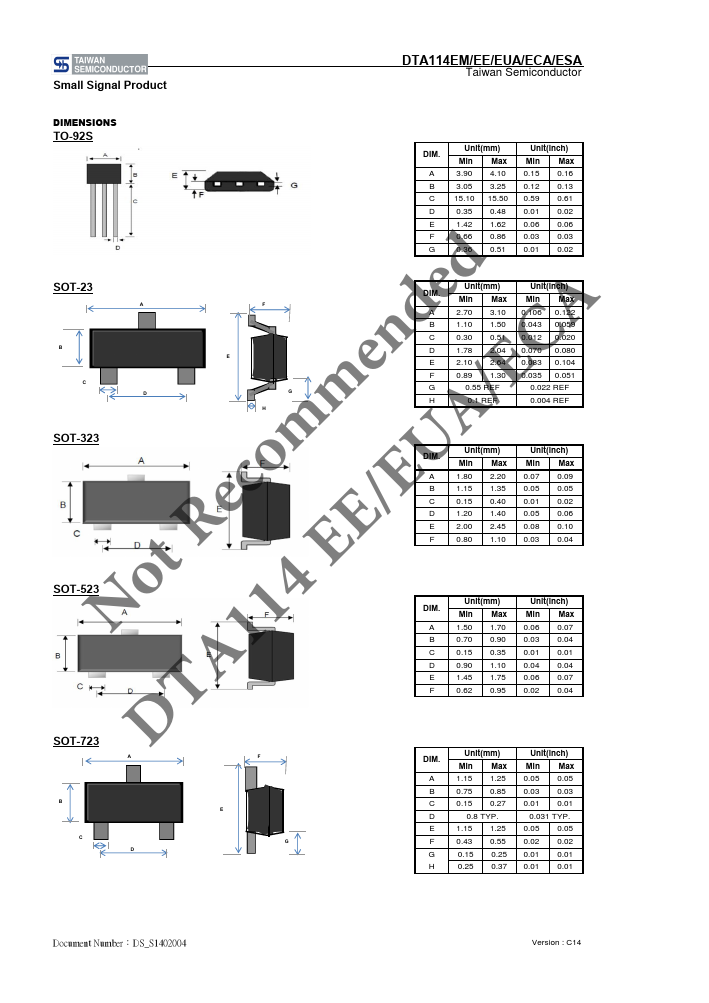

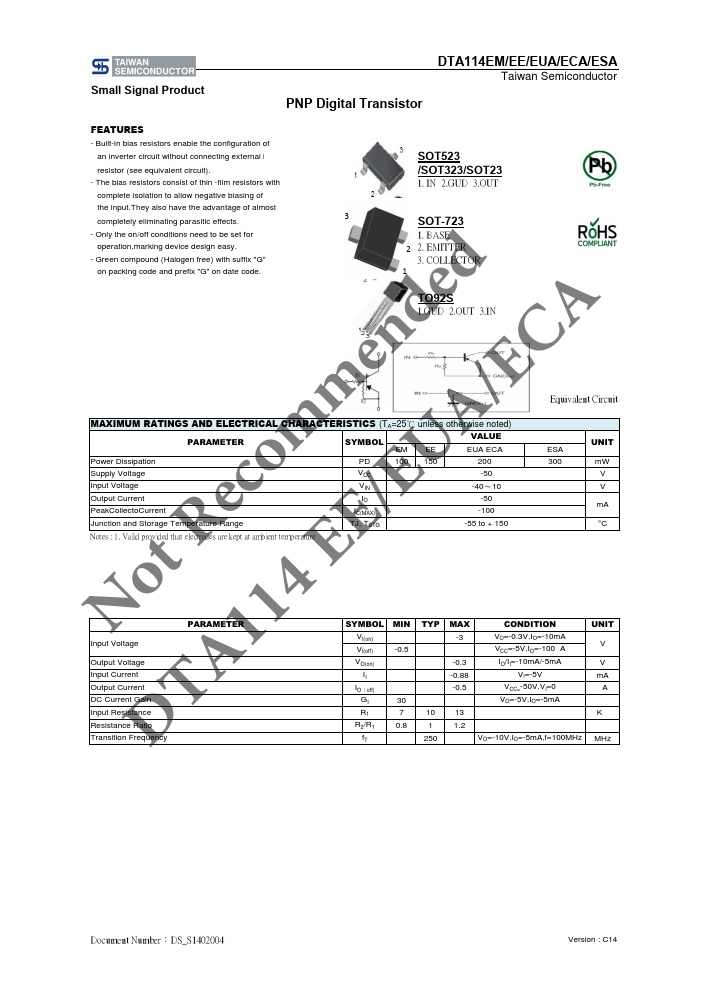

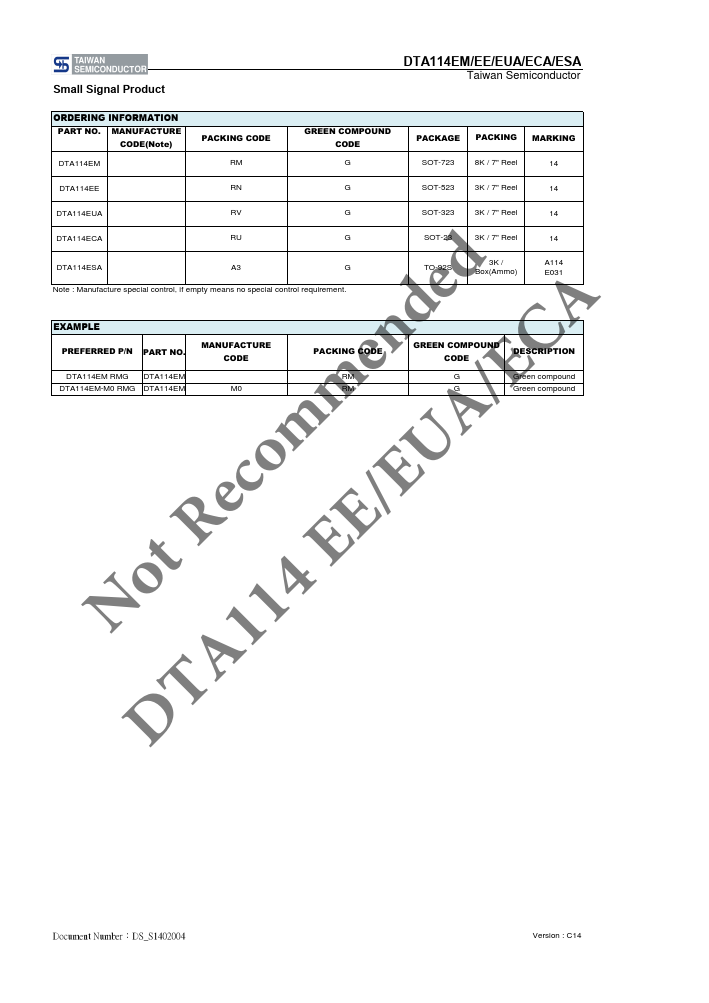

Additional preview pages of the DTA114ESA datasheet.

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistor (see equivalent circuit).
TheThe bias resistors consist of thin -film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completel yeliminating parasitic effects.
Only the on/off conditions need to be set for operation,marking device design easy.
Green compound (Halogen free) with suffix "G" on packi.
