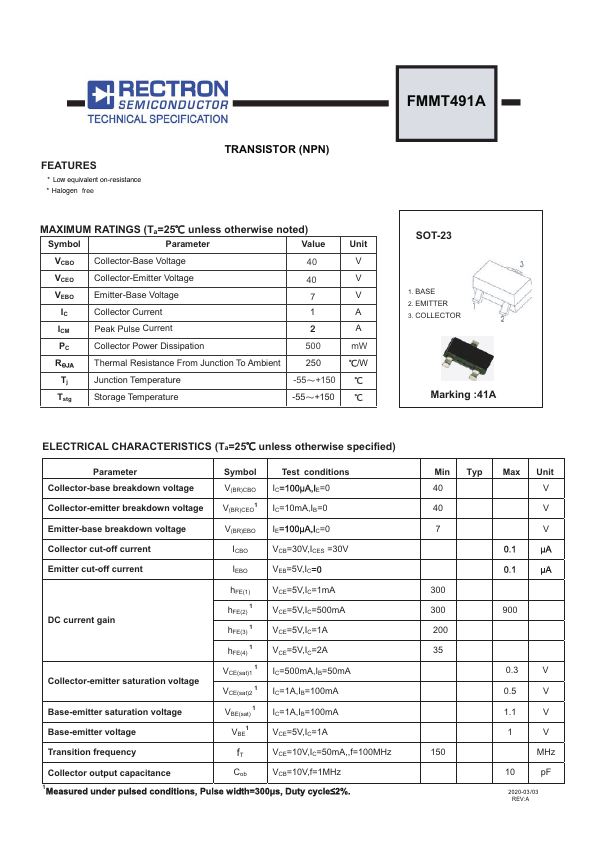

Rectron Semiconductor FMMT491A
NPN TRANSISTOR
| Part No. | FMMT491A |
|---|---|
| Datasheet | FMMT491A Download |
| Manufacturer |  Rectron Semiconductor |
| Description | NPN TRANSISTOR |
| Buy | Stock & Price |
FEATURES
* Low equivalent on-resistance * Halogen free TRANSISTOR (NPN)MAXIMUM RATINGS
(Ta=25 unless otherwise noted) Symbol Parameter Value VCBO Collector-Base Voltage 40 VCEO Collector-Emitter Voltage 40 VEBO Emitter-Base Voltage 7 IC Collector Current 1 ICM Peak Pulse Current PC Collector Power Dissipation 500 R Thermal Resistance From Junction To Ambient 250 Tj Junction Temperature -55 +150 Tstg Storage Temperature -55 +150 Unit V V V A A mW /W SOT-23 1. BASE 2. EMITTER 3. COLLECTOR Marking :41AELECTRICAL CHARACTERISTICS
(Ta=25 unless otherwise specified) Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Emitter cut-off current DC current gain Collector-emitter saturation voltage Base-emitter saturation voltage Base-emitter voltage Transition frequency Collector output capacitance 1 Symbol V(BR)CBO V(BR)CEO1 V(BR)EBO ICBO IEBO hFE(1) hFE(2) 1 hFE(3) 1 hFE(4) 1 VCE(sat)1 1 VCE(sat)2 1 VBE(sat) 1...
