FMMT491A - 40V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR

Key Features

  • ed products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMMT491A NPN SILICON PLANAR MEDIUM POWER TRANSISTOR Zetex Semiconductors
FMMT491 Medium power NPN transistor Zetex Semiconductors
FMMT491 Silicon NPN transistor BLUE ROCKET ELECTRONICS
FMMT491 NPN Trasnsitor JinYu
FMMT491 NPN Transistor First Silicon

Other Datasheets by Diodes Incorporated

Part Number Description
FMMT491 60V NPN MEDIUM POWER TRANSISTOR
FMMT491Q NPN MEDIUM POWER TRANSISTOR
FMMT493 100V NPN MEDIUM POWER TRANSISTOR
FMMT493A 120V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
FMMT494 120V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

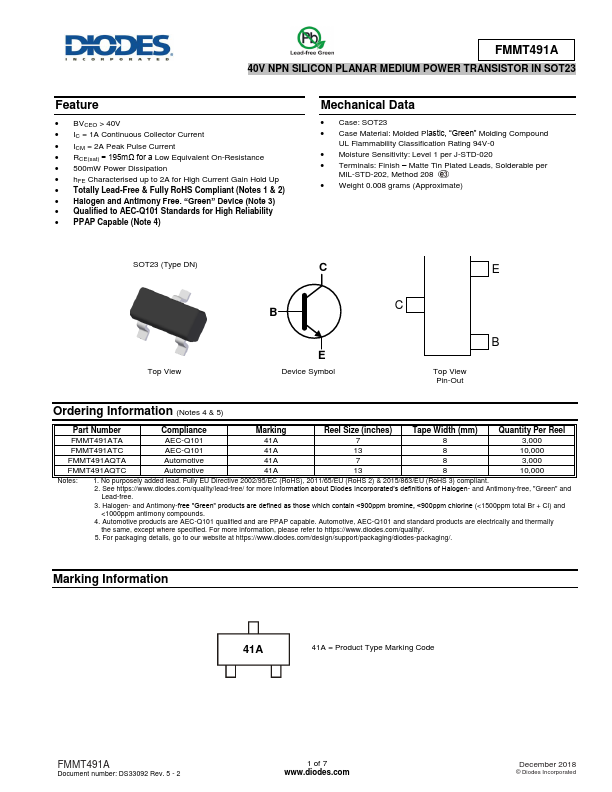

A Product Line of Diodes Incorporated FMMT491A 40V NPN SILICON PLANAR MEDIUM POWER TRANSISTOR IN SOT23 Feature • BVCEO > 40V • IC = 1A Continuous Collector Current • ICM = 2A Peak Pulse Current • RCE(sat) = 195mΩ for a low equivalent On-Resistance • 500mW Power Dissipation • hFE characterised up to 2A for high current gain hold up • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP capable (Note 4) Mechanical Data • Case: SOT23 • Case Material: molded plastic, “Green” molding compound • UL Flammability Classification Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight 0.
