1SS303 Datasheet PDF

FEATURES

● Low capacitance: Ct = 2.5 pF TYP.

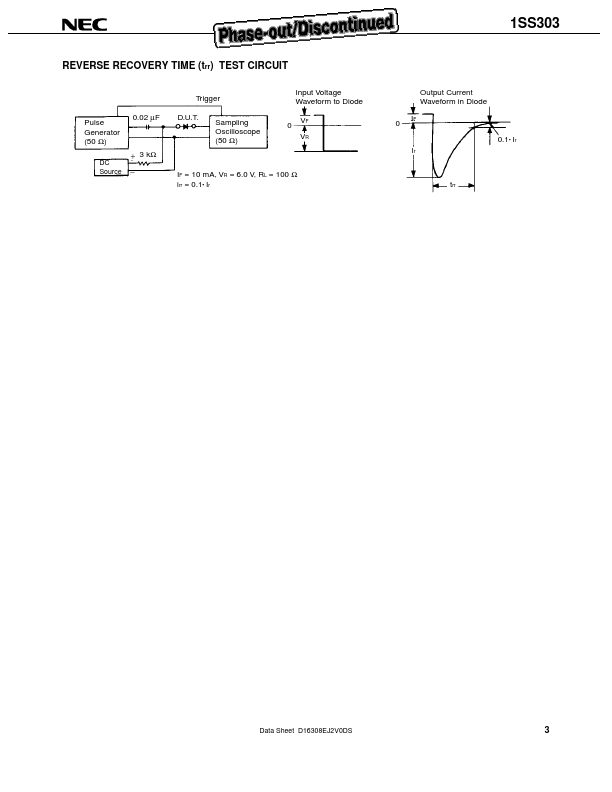

● High speed switching: trr = 4.0 ns MAX.
● Wide applications including switching, limitter, clipper.
● Double diode configuration assures economical use. PACKAGE DIMENSIONS (Unit: mm) 2.1±0.1 1.25±0.1

ABSOLUTE MAXIMUM RATINGS

Maximum Voltages and Currents (TA = 25°C) Peak Reverse Voltage VRM DC Reverse Voltage VR Surge Current (1 µs) Note IFSM Surge Current (1 µs) IFSM Peak Forward Current Note IFM Peak Forward Current IFM Average Rectified Current Note IO Average Rectified Current IO Maximum Temperatures Junction Temperature Tj Storage Temperature Range Tstg Thermal Resistance Junction to Ambient Note Rth(j-a) Junction to Ambient Rth(j-a) Note Both diodes loaded simultaneously. 75 V 50 V 6.0 A 4.0 A 450 mA 300 mA 150 mA 100 mA 150 °C –55 to + 150 °C 1.0 °C/mW 0.85 °C/mW 2.0±0.2 0.3−+00.1 0.65 0.65 2 1 3 0.3−+00.1 Marking 0 to 0.1 0.15−+00..015 0.9±0.1 0.3 CONNECTION DIAGRAM (Top View) 2 3 1. Cathode 1 2. Cathode 3. Anode Marking : A4

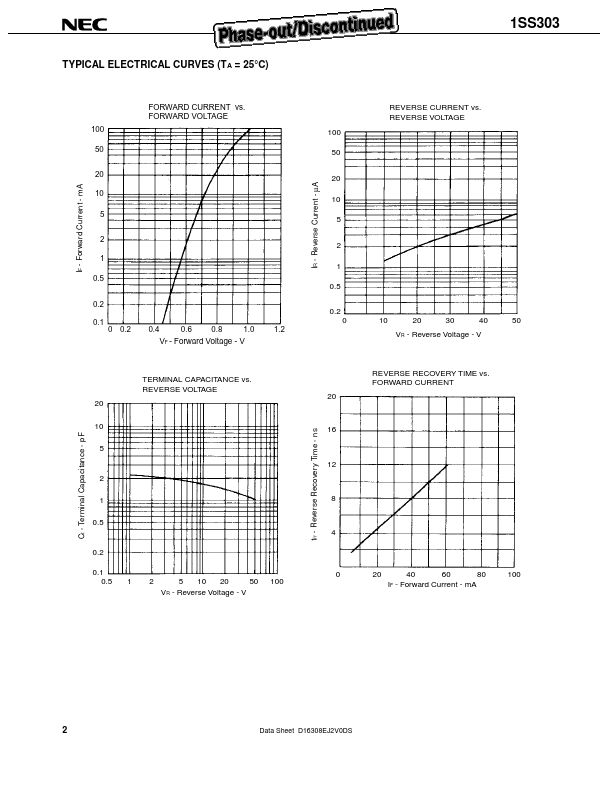

ELECTRICAL CHARACTERISTICS

(TA = 25°C) CHARACTERISTICS SYMBOL TEST CONDITIONS MIN.
