PNP Silicon Epitaxial Transistor
This datasheet includes multiple variants, all published together in a single manufacturer document.
| Part number | 2SB1115A |
|---|---|
| Manufacturer | Renesas |
| File Size | 1.24 MB |
| Description | PNP SILICON EPITAXIAL TRANSISTOR |
| Datasheet | 2SB1115A 2SB1115 Datasheet (PDF) |
|
|

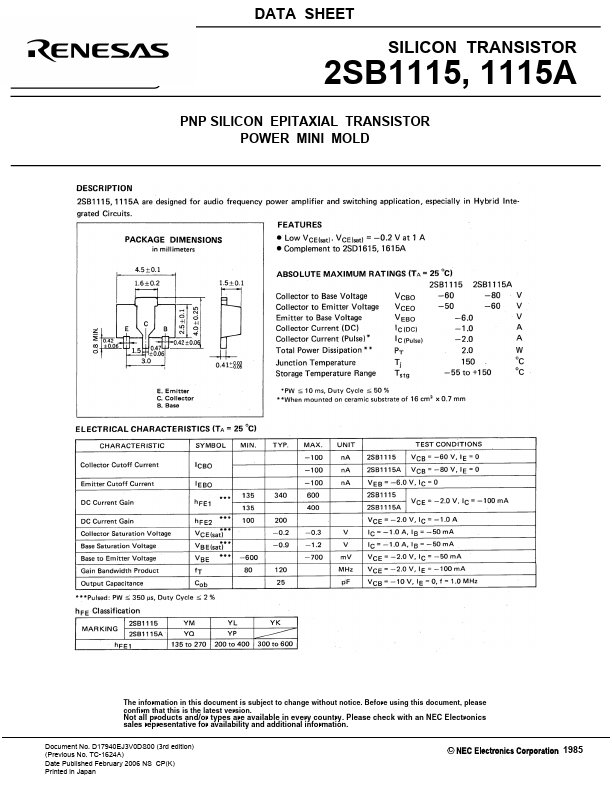

DATA SHEET SILICON TRANSISTOR 2SB1115, 1115A PNP SILICON EPITAXIAL TRANSISTOR POWER MINI MOLD The information in this document is subject to change without notice. Before using this document, please confirm that this is the latest version. Not all products and/or types are available in every country.
