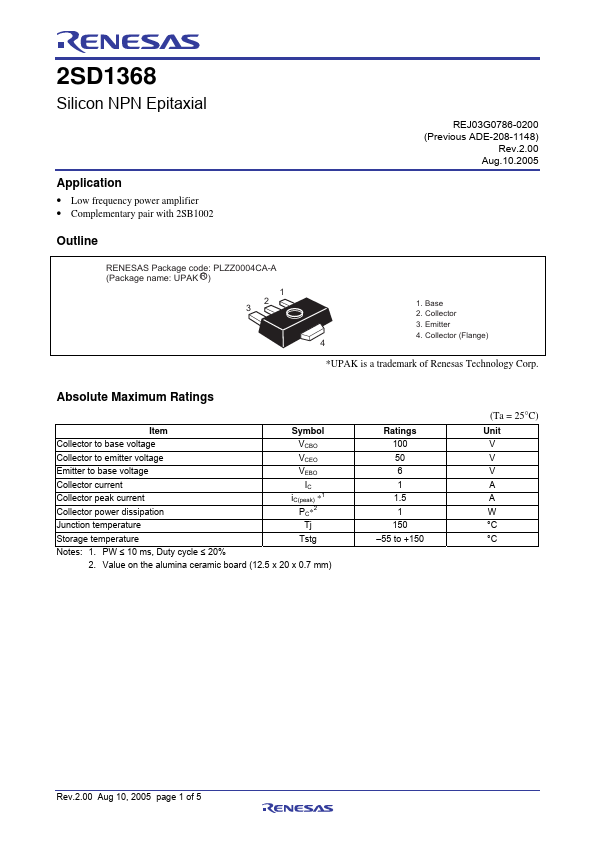

2SD1368
Silicon NPN Epitaxial
Application
- Low frequency power amplifier
- plementary pair with 2SB1002
Outline
RENESAS Package code: PLZZ0004CA-A (Package name: UPAK R )
1 2 3
REJ03G0786-0200 (Previous ADE-208-1148)
Rev.2.00 Aug.10.2005
1. Base 2. Collector 3. Emitter 4. Collector (Flange) 4
- UPAK is a trademark of Renesas Technology Corp.
Absolute Maximum Ratings
Item
Symbol
Collector to base voltage
VCBO
Collector to emitter voltage
VCEO
Emitter to base voltage
VEBO
Collector current Collector peak current Collector power dissipation
IC i C(peak)
- 1
PC- 2
Junction temperature
Tj
Storage temperature
Tstg
Notes: 1. PW ≤ 10 ms, Duty cycle ≤ 20%
2. Value on the alumina ceramic board (12.5 x 20 x 0.7 mm)
Ratings 100 50 6 1 1.5 1 150
- 55 to +150
(Ta = 25°C)
Unit V V V A A W °C °C
Rev.2.00 Aug 10, 2005 page 1 of 5

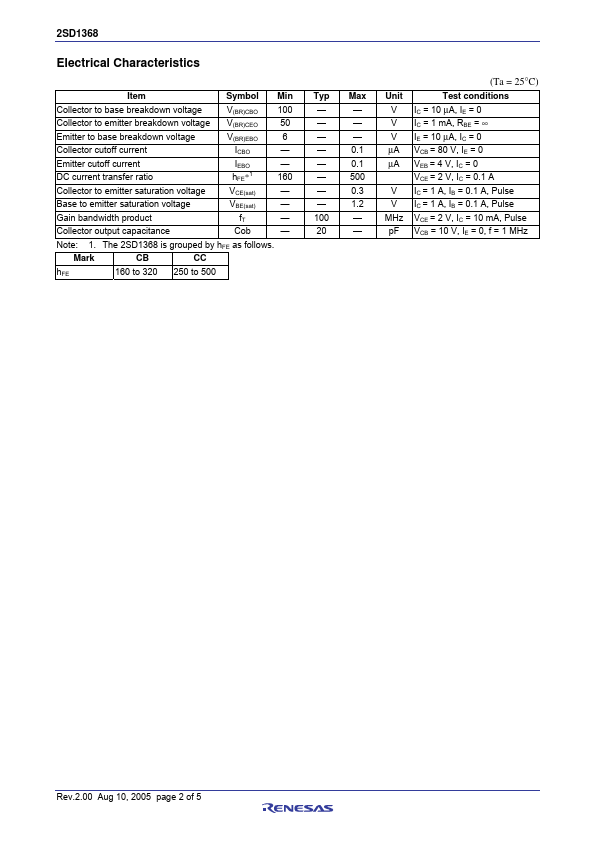

Electrical Characteristics
(Ta = 25°C)
Item
Symbol Min Typ Max Unit
Test...
