2SD1420
Silicon NPN Epitaxial
Application
Low frequency power amplifier

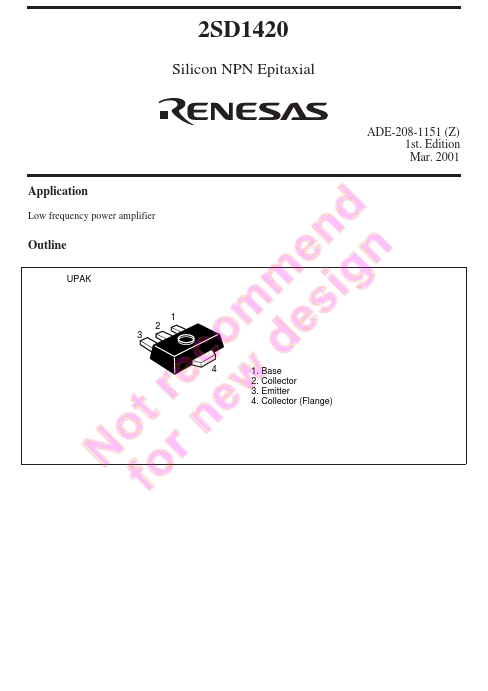

Outline
UPAK
ADE-208-1151 (Z) 1st. Edition Mar. 2001
1 2 3
1. Base
2. Collector
3. Emitter
4. Collector (Flange)

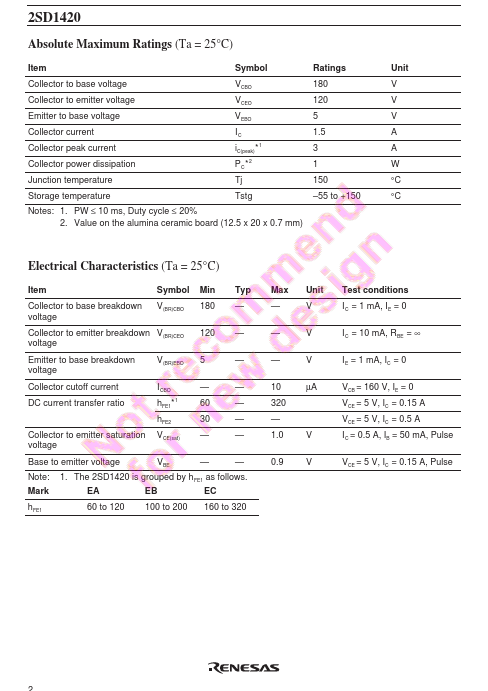

Absolute Maximum Ratings (Ta = 25°C)
Item
Symbol
Ratings
Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature
VCBO VCEO VEBO IC i
- 1
C(peak)
- 2 Tj
180 120 5 1.5 3 1 150
Storage temperature
Tstg
- 55 to +150
Notes: 1. PW ≤ 10 ms, Duty cycle ≤ 20% 2. Value on the alumina ceramic board (12.5 x 20 x 0.7 mm)
Unit V V V A A W °C °C

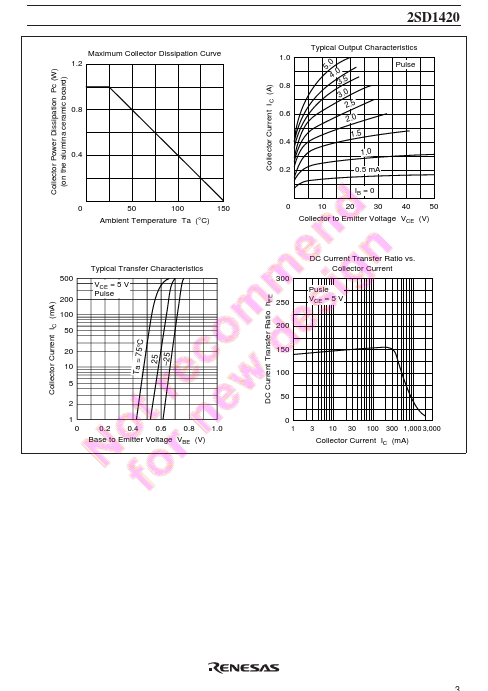

Electrical Characteristics (Ta = 25°C)
Item
Symbol Min Typ
Collector to base breakdown V(BR)CBO 180
- voltage
Collector to emitter breakdown V(BR)CEO 120
- voltage
Emitter to base breakdown
V(BR)EBO
- voltage
Collector cutoff...
