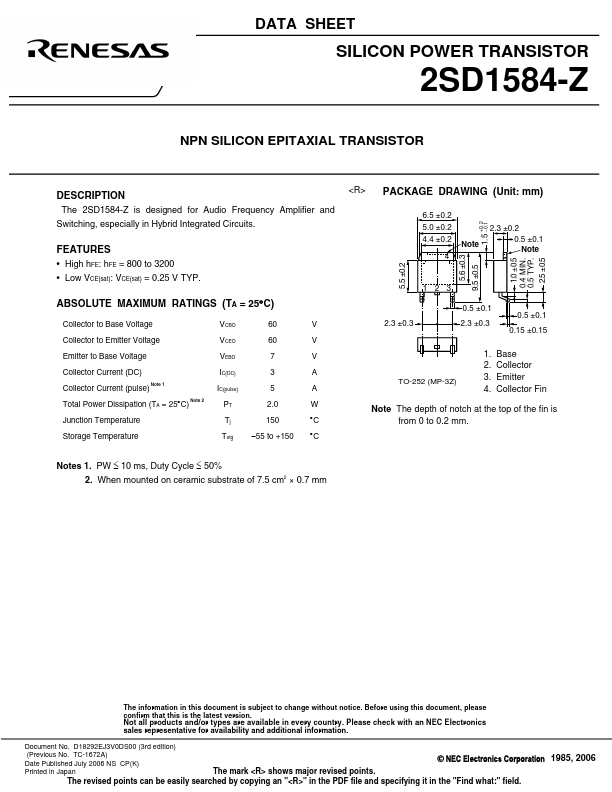

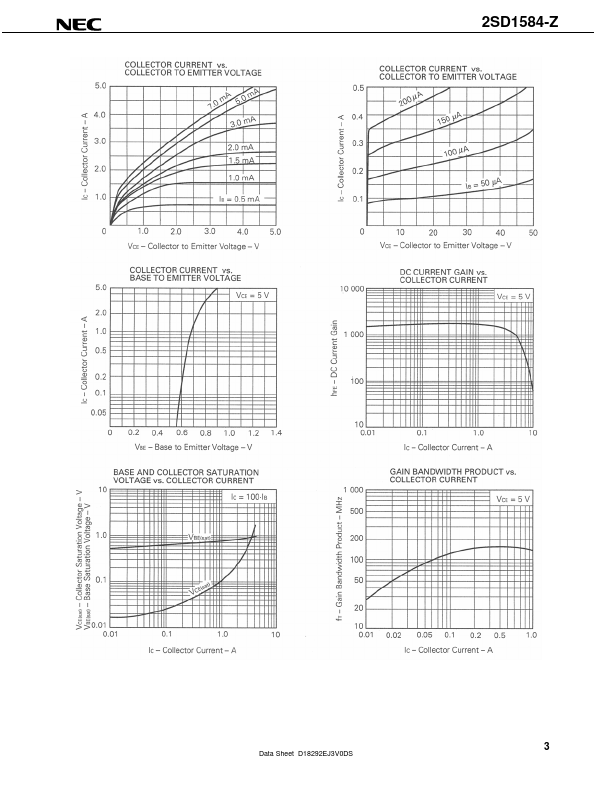

2SD1584-Z
DESCRIPTION
The 2SD1584-Z is designed for Audio Frequency Amplifier and Switching, especially in Hybrid Integrated Circuits.
FEATURES
- High h FE: h FE = 800 to 3200
- Low VCE(sat): VCE(sat) = 0.25 V TYP.
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Collector to Base Voltage
VCBO
Collector to Emitter Voltage
VCEO
Emitter to Base Voltage
VEBO
Collector Current (DC)
IC(DC)
Collector Current (pulse) Note 1
IC(pulse)
Total Power Dissipation (TA = 25°C) Note 2
Junction Temperature
Tj
°C
Storage Temperature
Tstg
- 55 to +150 °C
<R> PACKAGE DRAWING (Unit: mm)
6.5 ±0.2 5.0 ±0.2 4.4 ±0.2
Note
+0.2
- 0.1
2.3 ±0.2 0.5 ±0.1 Note
1.0 ±0.5 0.4 MIN. 0.5 TYP.
2.5...
