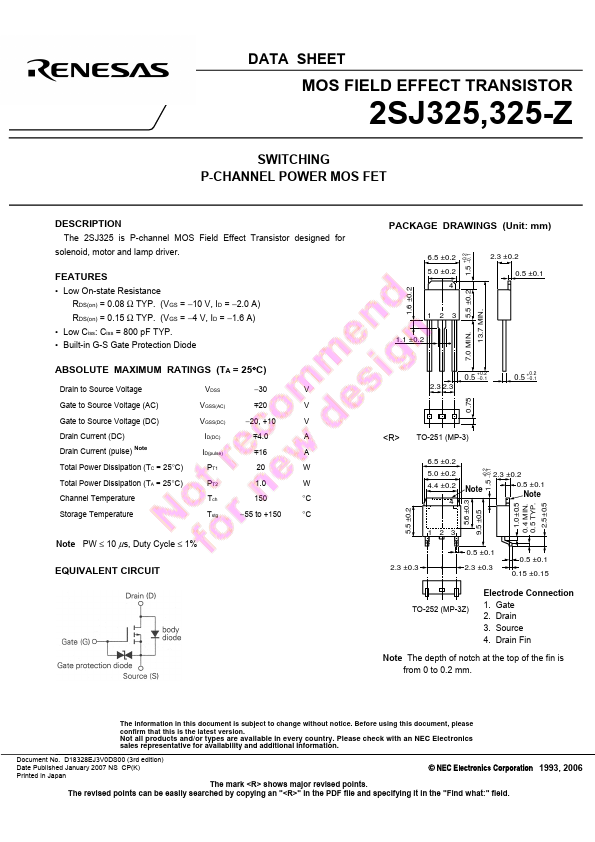

DATA SHEET
MOS FIELD EFFECT TRANSISTOR
2SJ325,325-Z
SWITCHING P-CHANNEL POWER MOS FET
DESCRIPTION The 2SJ325 is P-channel MOS Field Effect Transistor designed for
solenoid, motor and lamp driver.
FEATURES • Low On-state Resistance
RDS(on) = 0.08 Ω TYP. (VGS = −10 V, ID = −2.0 A) RDS(on) = 0.15 Ω TYP. (VGS = −4 V, ID = −1.6 A) • Low Ciss: Ciss = 800 pF TYP. • Built-in G-S Gate Protection Diode
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Drain to Source Voltage
VDSS
−30
V
Gate to Source Voltage (AC)
VGSS(AC)
m20
V
Gate to Source Voltage (DC)
VGSS(DC)
−20, +10
V
Drain Current (DC) Drain Current (pulse) Note
ID(DC)
m4.0
A
ID(pulse)
m16
A
Total Power Dissipation (TC = 25°C)
PT1
20
W
Total Power Dissipation (TA = 25°C)
PT2
1.
