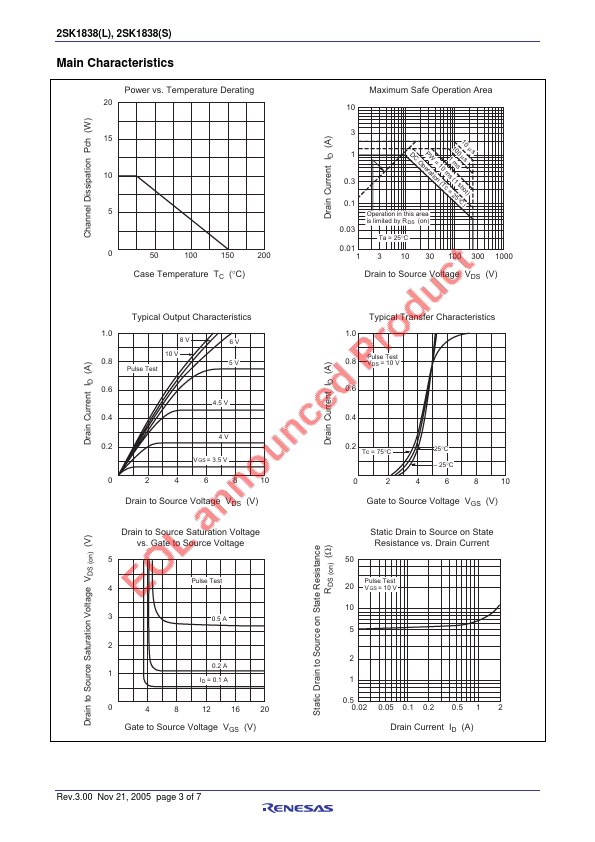

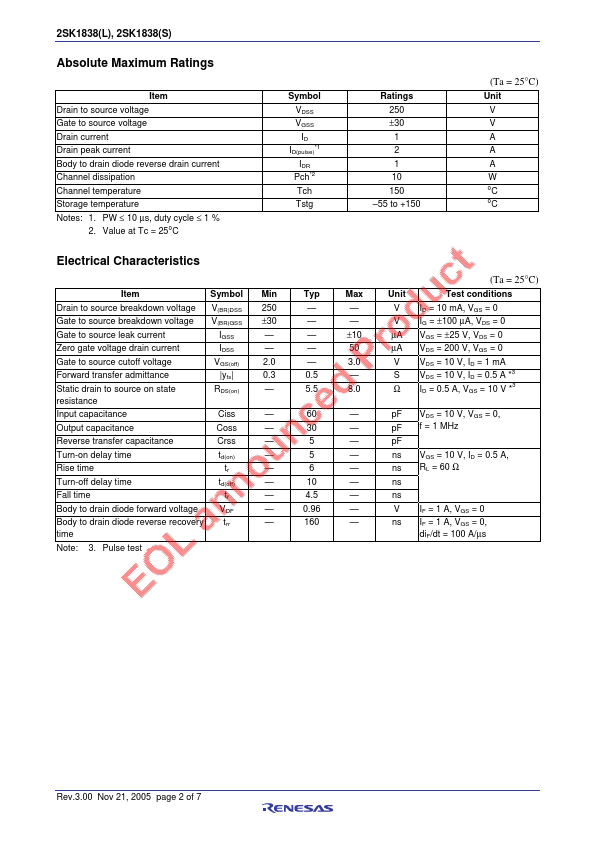

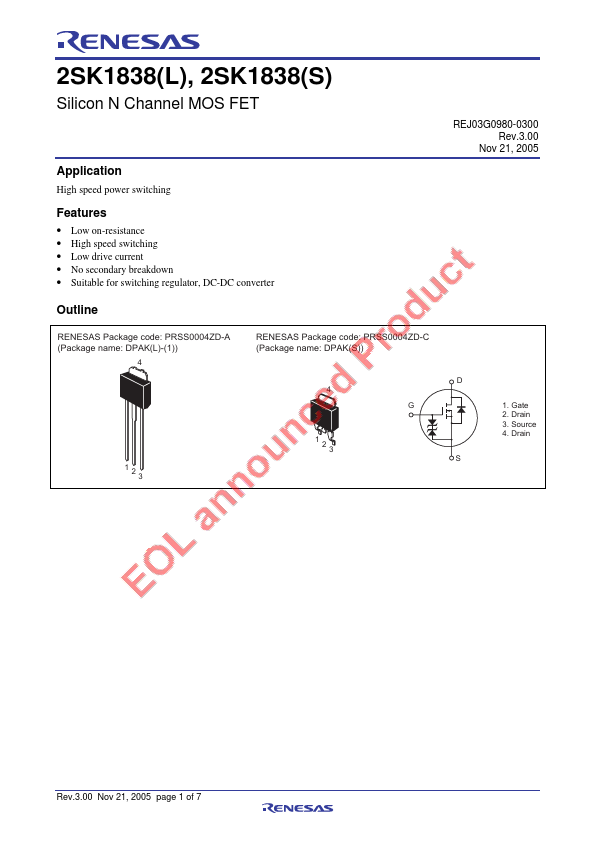

Features - Low on-resistance - High speed switching - Low drive current - No secondary breakdown - Suitable for switching regulator, DC-DC converter Outline RENESAS Package code: PRSS0004ZD-A (Package name: DPAK(L)-(1)) RENESAS Package code: PRSS0004ZD-C (Package name: DPAK(S)) 4 G REJ03G0980-0300 Rev.3.00 Nov 21, 2005 D 1. Gate 2. Drain 3. Source 4. Drain Rev.3.00 Nov 21, 2005 page 1 of 7 2SK1838(L), 2SK1838(S) Absolute Maximum Ratings Item Drain to source voltage Gate to source voltage Drain current Drain peak current Body to drain diode reverse drain current Channel dissipation Channel temperature Storage temperature Notes: 1. PW ≤ 10 µs, duty cycle ≤ 1 % 2. Value at Tc = 25°C Electrical Characteristics Symbol VDSS VGSS ID ID(pulse)- 1 IDR Pch- 2 Tch Tstg Item Symbol Min Drain to source breakdown voltage V(BR)DSS 250 Gate to source breakdown voltage V(BR)GSS ±30 Gate to source leak current IGSS - Zero gate voltage drain current IDSS - Gate to source cutoff voltage VGS(off) Forward transfer admittance |yfs| Static drain to source on state...
